Product Description

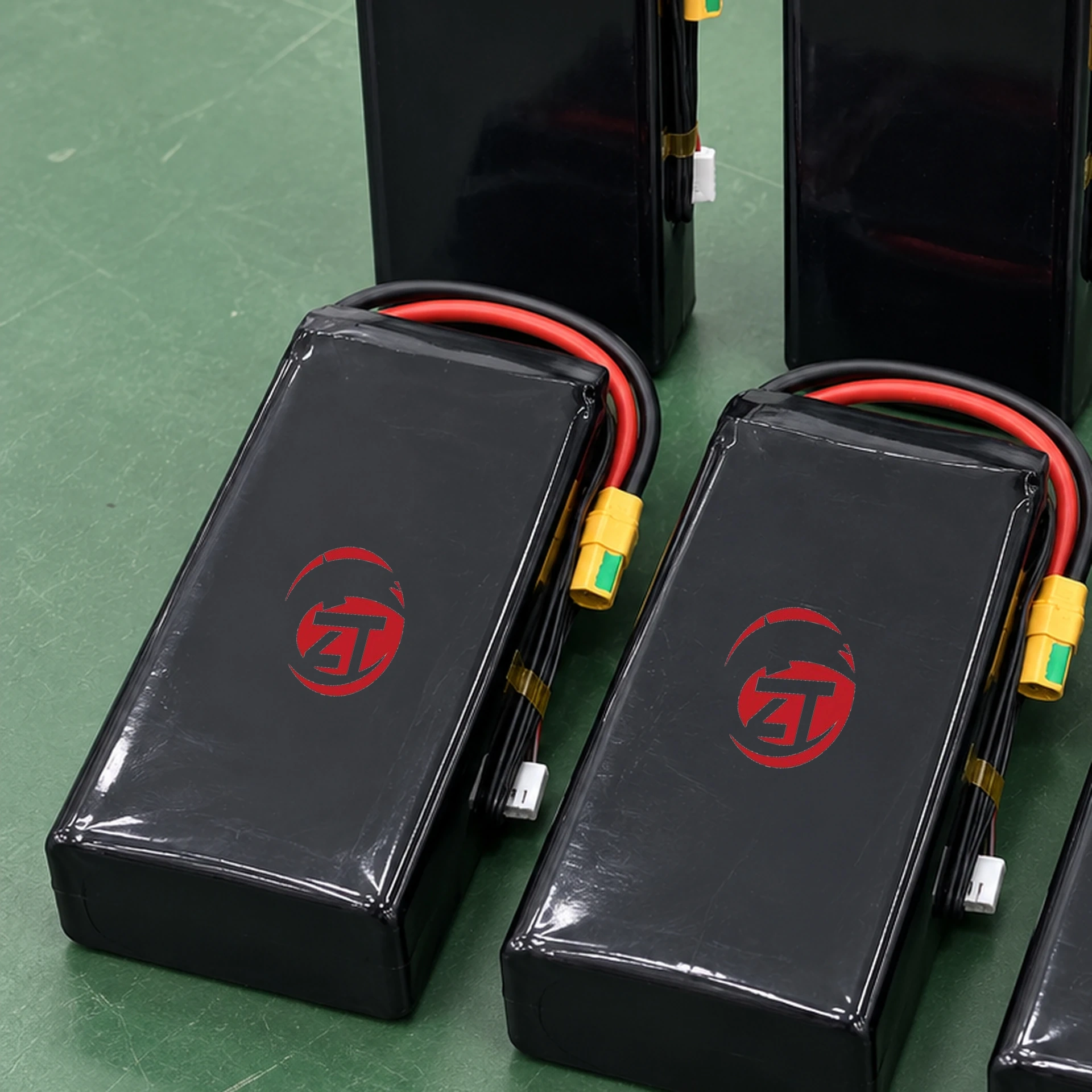

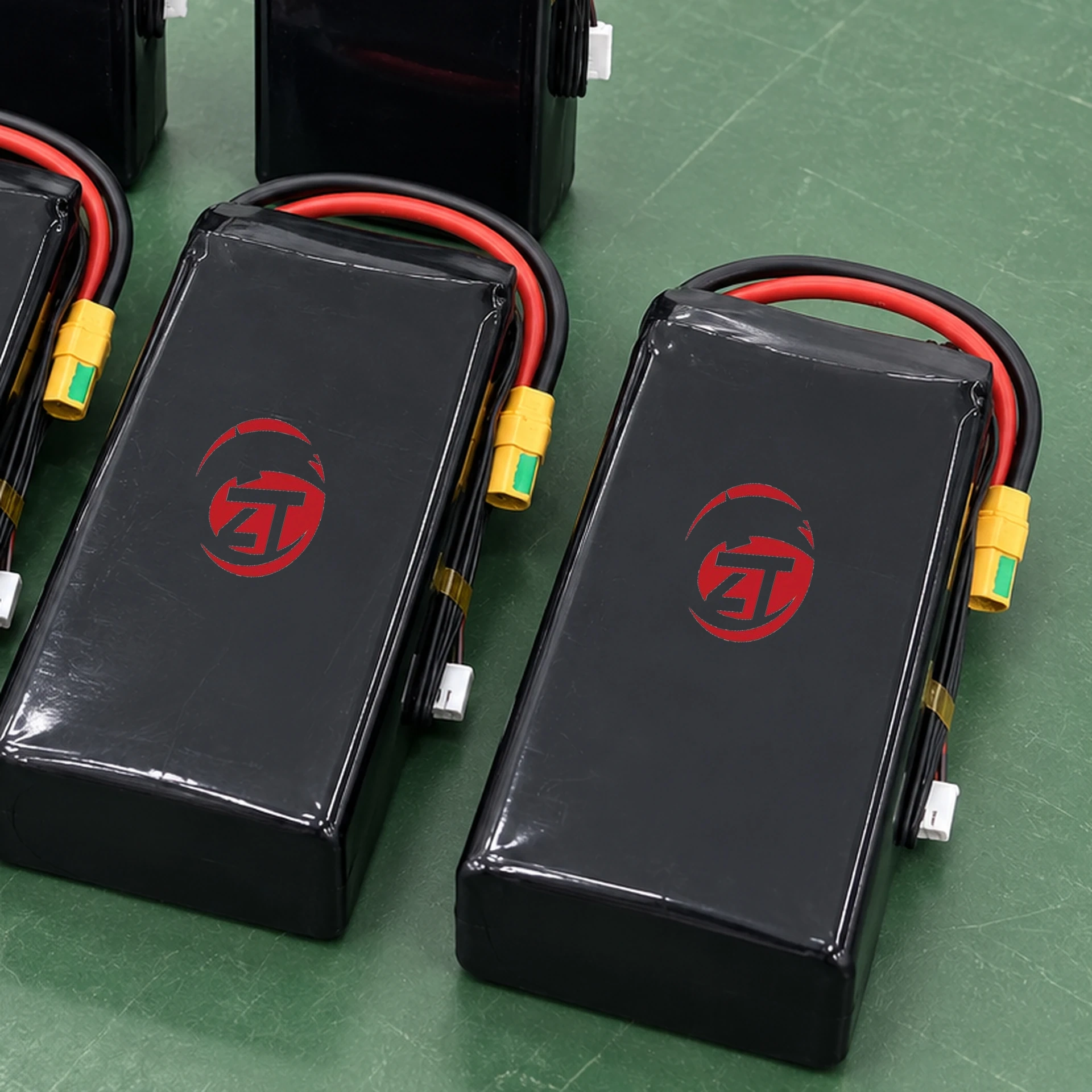

The 6S 16000mAh UAV Battery uses a 25.2V charge endpoint, unlike the 25.5V value specified for the 22Ah and 30Ah references. That difference should remain visible when selecting a charger. The pack’s 48A continuous limit provides a second selection boundary for mapping or inspection aircraft. Actual mission duration depends on the aircraft power profile and retained landing reserve.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference configuration | 6S16Ah |
| Battery type | semi solid state lithium battery |
| Configuration | 6S1P |
| Nominal voltage | 22.2V |
| Nominal capacity | 16000mAh / 16Ah |
| Nominal energy | 355.2Wh |
| Cell energy density | 270Wh/kg cell value |
| Maximum charge current | 16A at 1C |
| Charge cutoff voltage | 25.2V |
| Discharge cutoff voltage | 15.0V |
| Parameter | Specification |
|---|---|
| Continuous discharge | 48A at 3C |
| Maximum discharge | Up to 160A at 10C; applicable peak duration defined for the approved configuration |
| Cycle-life reference | Approx. 200-400 cycles; around the end of this range, available capacity typically declines to about 80% of initial rated capacity under specified conditions* |
| Working temperature | -20 C to 55 C |
| Storage conditions | -20 C to 40 C; below 85% RH |
| Dimensions (W x T x H) | 50 x 78 x 195 mm; tolerance +/-3 mm |
| Weight | Approx. 1480g |
| Power lead | 12AWG, 150 mm, optional |
| Power connector | XT60, optional |
| Balance harness | 22AWG, 150 mm, optional |
| Balance connector | XH-7P for B0 through B6, optional |
Product Details
Mapping Missions
A mapping drone battery is assessed against the complete route: transit, survey passes and the return reserve. This model provides 355.2Wh nominal energy and a 48A continuous reference. Payload changes and climb demand should be included in the aircraft current record used for selection.
Inspection Missions
An inspection drone battery may spend substantial time hovering or making repeated climbs. Those conditions differ from a steady cruise route. Use the measured hover demand, peak duration and available landing reserve to assess this 16Ah pack, together with its approximately 1.48kg mass.
Keep the 48A reference clearly identified
The sample record should state the battery version, mass and finished harness. A connector that mates physically does not establish compatibility with another 16Ah model’s current rating or charging limit.
Production and Handling Context
Request a Configuration Review
Send aircraft mass allowance, bay dimensions and operating profile to New Journey for a 6S 16000mAh UAV Battery quotation.
Compare 6S 16000mAh UAV Battery with related models
| Selection point | 6S 16000mAh UAV Battery | 6S 22000mAh UAV Battery | 6S 30000mAh UAV Battery |
|---|---|---|---|
| Configuration | 6S1P | 6S1P; cell reference CGB8575175-22000mAh | 6S1P reference configuration |
| Nominal voltage | 22.2V | 22.2V | 22.2V |
| Nominal capacity | 16000mAh / 16Ah | 22000mAh / 22Ah | 30000mAh / 30Ah |
| Nominal energy | 355.2Wh | 488.4Wh | 666Wh |
| Cell energy density | 270Wh/kg cell value | 350Wh/kg individual-cell value | 350Wh/kg individual-cell value |
| Charge cutoff voltage | 25.2V | 25.5V | 25.5V |
FAQ
What should I compare before selecting 6S 16000mAh UAV Battery?
configuration: 6S1P for this model, compared with 6S1P; cell reference CGB8575175-22000mAh for 6S 22000mAh UAV Battery; nominal capacity: 16000mAh / 16Ah for this model, compared with 22000mAh / 22Ah for 6S 22000mAh UAV Battery.
What charging voltage and current are specified for this model?
Charge cutoff voltage: 25.2V; Maximum charge current: 16A at 1C. The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Dimensions (W x T x H): 50 x 78 x 195 mm; tolerance +/-3 mm; Weight: Approx. 1480g. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
Which connection details should be fixed for this battery?
Power lead: 12AWG, 150 mm, optional; Power connector: XT60, optional. Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
