Product Description

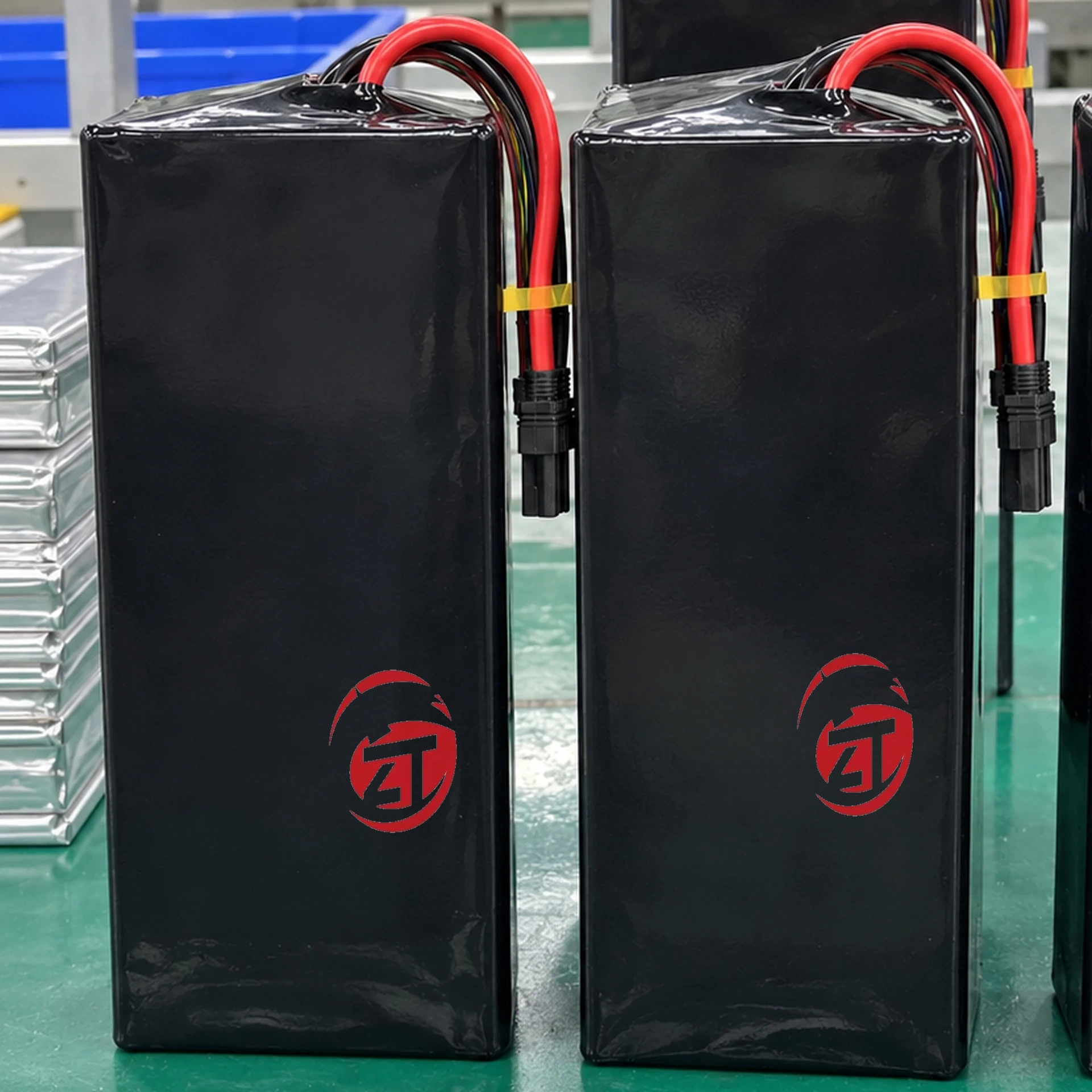

The 14S 105Ah UAV Battery places a large energy reserve in a tall 14S1P assembly. For a pack of this mass, the aircraft tray must carry the body and distribute restraint loads without relying on the harness. Centre of gravity also changes with the mounting position. The listed discharge-rate figures need to be interpreted alongside the finished wiring and the actual mission load.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference configuration | 14S1P-105Ah |
| Product category | semi solid state lithium UAV battery |
| Configuration | 14S1P |
| Nominal voltage | 51.8V |
| Nominal capacity | 105000mAh / 105Ah |
| Nominal energy | 5439Wh |
| Cell energy-density reference | 350Wh/kg cell reference; confirm corresponding cell documentation |
| Pack weight | Approx. 15.6kg |
| Pack size (L x W x H) | 175 x 123 x 420mm |
| Discharge rate shown | 1C / 5C shown on product reference |
| Arithmetic current reference | 105A at 1C; 525A at 5C (arithmetic references only, not verified pack limits) |
| Power / balance interface | High-current power lead and balance interface shown; final mating connector and cable configuration confirmed for the approved order |
| Charging profile | Matched series-count charging; charge voltage/current and charger workflow confirmed for the final configuration |
The energy-density value above is treated as a cell-level reference following the supplier’s clarification. Request the corresponding cell model, specification revision and test conditions with the quotation. Finished-pack weight and external dimensions are separate installation inputs and must not be used to reverse-infer cell energy density.
Product Details
Confirm support and handling points
For the sample, document the body support and restraint method without placing lifting force on cables or connectors. Compare the battery position with the aircraft’s mass-distribution limits. The same support and packing requirements should follow the approved OEM batch.
Production and Handling Context
Prepare a Product Enquiry
Provide the aircraft mass budget, support drawing and service-access requirements. New Journey can quote the 105Ah assembly around a defined installation rather than an energy figure in isolation.
Compare 14S 105Ah UAV Battery with related models
| Selection point | 14S 105Ah UAV Battery | 14S 36000mAh UAV Battery | 14S 72000mAh UAV Battery |
|---|---|---|---|
| Configuration | 14S1P | 14S1P | 14S1P |
| Nominal voltage | 51.8V | 51.8V | 51.2V |
| Nominal capacity | 105000mAh / 105Ah | 36000mAh / 36Ah | 72000mAh / 72Ah |
| Nominal energy | 5439Wh | 1864.8Wh | 3686.4Wh |
| Cell energy-density reference | 350Wh/kg cell reference; confirm corresponding cell documentation | 350Wh/kg cell reference; confirm corresponding cell documentation | 400Wh/kg cell reference; confirm corresponding cell documentation |
| Pack weight | Approx. 15.6kg | Approx. 5.6kg | Approx. 9.5kg |
FAQ
What should I compare before selecting 14S 105Ah UAV Battery?
nominal capacity: 105000mAh / 105Ah for this model, compared with 36000mAh / 36Ah for 14S 36000mAh UAV Battery; nominal energy: 5439Wh for this model, compared with 1864.8Wh for 14S 36000mAh UAV Battery.
What charger information is needed for this battery?
Charging profile: Matched series-count charging; charge voltage/current and charger workflow confirmed for the final configuration. The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
What does the listed weight tell me about installation?
Pack weight: Approx. 15.6kg. Weight alone does not define the battery envelope or mounting points. Obtain the external dimensions and retention drawing for the selected build before changing the aircraft battery bay. Include the terminal position and access needed to secure the battery.
Which connection details should be fixed for this battery?
Power / balance interface: High-current power lead and balance interface shown; final mating connector and cable configuration confirmed for the approved order. Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
