Product Description
The 6S 22000mAh UAV Battery keeps the 195mm body dimension of the related 30Ah reference while reducing width to 55mm. That difference can matter in a constrained battery tray. Capacity, nominal energy and continuous current are also lower, so the choice should follow the mission load rather than fit alone. Charging uses this model’s 25.5V cutoff and 11A maximum current.
Comparing 16Ah 22Ah and 30Ah
This high energy density UAV battery offers 488.4Wh at approximately 1.62kg. Relative to the 16Ah reference, nominal energy increases by 37.5% and body width by 5mm. Relative to the 30Ah version, it is approximately 430g lighter and 13mm narrower. The choice therefore involves energy, load current and mechanical fit rather than capacity alone.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference configuration | 6S22Ah |
| Battery type | solid state lithium battery |
| Configuration | 6S1P; cell reference CGB8575175-22000mAh |
| Nominal voltage | 22.2V |
| Nominal capacity | 22000mAh / 22Ah |
| Nominal energy | 488.4Wh |
| Cell energy density | 350Wh/kg individual-cell value |
| Maximum charge current | 11A at 0.5C |
| Charge cutoff voltage | 25.5V |
| Discharge cutoff voltage | 15.0V |
| Continuous discharge | 66A at 3C |
| Maximum discharge | 220A at 10C; applicable duration follows the approved configuration |
| Cycle life reference | Approx. 200-400 cycles; around the end of this range, available capacity typically declines to about 80% of initial rated capacity under specified conditions |
| Working temperature | -20°C to 55°C |
| Storage conditions | -20°C to 40°C; below 85% RH |
| Dimensions (W x T x H) | 55 x 78 x 195mm; tolerance +/-5mm |
| Weight | approximately 1620g |
Product Details
The 55mm Body Width
The 6S 22000mAh drone battery provides a mid-capacity option in the 6S family with a 55mm reference width. Compare the complete envelope and mass with the aircraft drawing before moving to the wider 30Ah or 40Ah alternatives.
Aircraft Selection
The 6S solid state battery can be assessed for an aircraft that needs more reserve than the 16Ah reference but has limited width or mass allowance. The 66A continuous rating should cover the actual sustained load. The cell material designation does not replace a finished-pack temperature and current assessment.

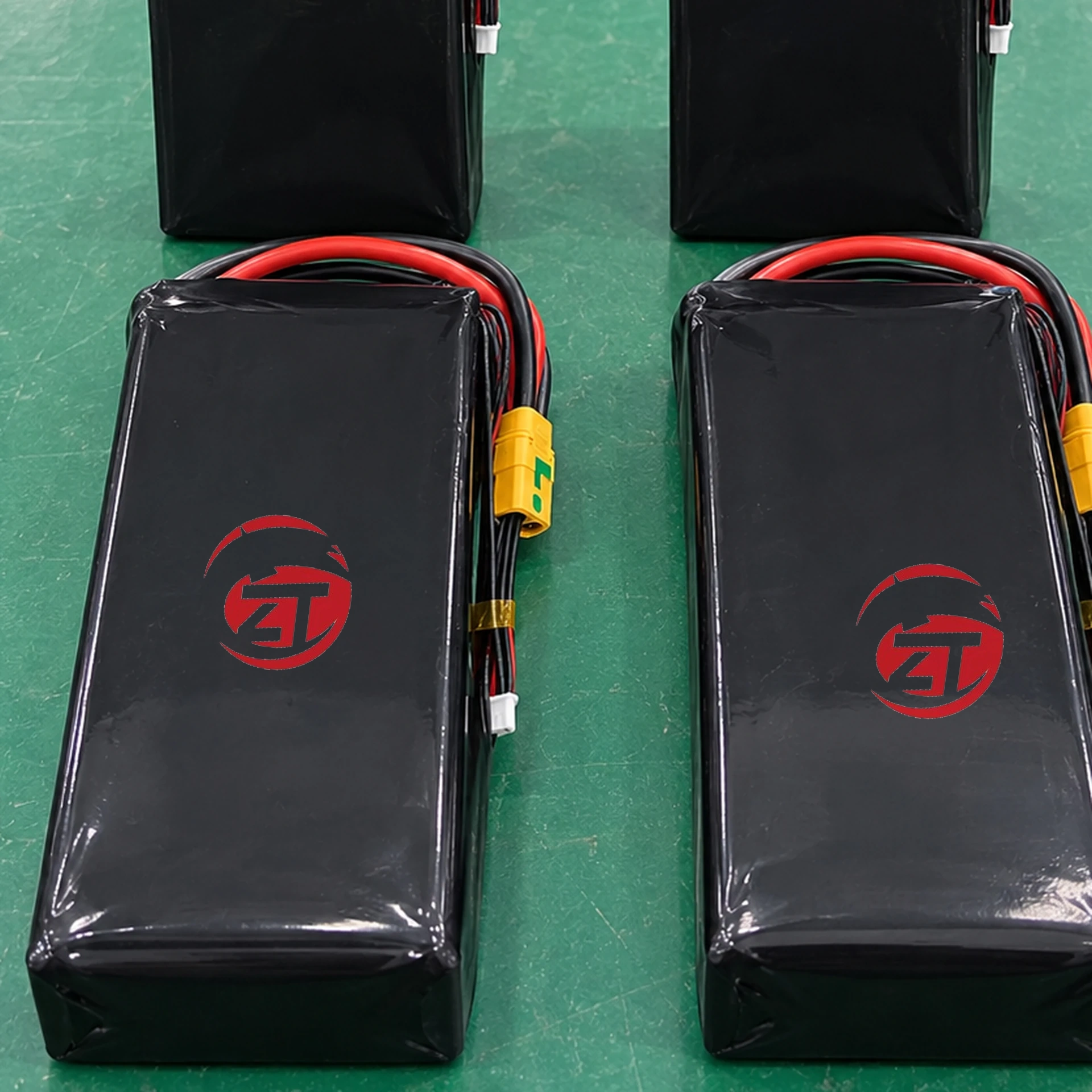

Sample Consistency
For a 22.2V 22000mAh UAV battery order, agree the cell configuration, body tolerances, harness and electrical acceptance criteria before sample approval. Compare repeat units with that record, including capacity-test conditions and the specified voltage checks.
Check battery retention during handling
The pack should be supported without loading the cable exit or squeezing the wrapped body. Retain the selected connector, polarity and sample dimensions with the order so the mounting arrangement stays repeatable.
Production and Handling Context
Prepare a Product Enquiry
Send battery-bay width, cable route and sustained load to New Journey for a 6S 22000mAh UAV Battery quotation.
Compare 6S 22000mAh UAV Battery with related models
| Selection point | 6S 22000mAh UAV Battery | 6S 16000mAh UAV Battery | 6S 30000mAh UAV Battery |
|---|---|---|---|
| Configuration | 6S1P; cell reference CGB8575175-22000mAh | 6S1P | 6S1P reference configuration |
| Nominal voltage | 22.2V | 22.2V | 22.2V |
| Nominal capacity | 22000mAh / 22Ah | 16000mAh / 16Ah | 30000mAh / 30Ah |
| Nominal energy | 488.4Wh | 355.2Wh | 666Wh |
| Cell energy density | 350Wh/kg individual-cell value | 270Wh/kg cell value | 350Wh/kg individual-cell value |
| Charge cutoff voltage | 25.5V | 25.2V | 25.5V |
FAQ
What should I compare before selecting 6S 22000mAh UAV Battery?
configuration: 6S1P; cell reference CGB8575175-22000mAh for this model, compared with 6S1P for 6S 16000mAh UAV Battery; nominal capacity: 22000mAh / 22Ah for this model, compared with 16000mAh / 16Ah for 6S 16000mAh UAV Battery.
What charger information is needed for this battery?
Charge cutoff voltage: 25.5V; Maximum charge current: 11A at 0.5C. The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Dimensions (W x T x H): 55 x 78 x 195mm; tolerance +/-5mm; Weight: approximately 1620g. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
What discharge limit should the equipment designer use?
Continuous discharge: 66A at 3C; Maximum discharge: 220A at 10C; applicable duration follows the approved configuration. A short-duration peak is not a sustained operating allowance. Retain the stated conditions when checking the operating load, connector and wiring.
