Product Description

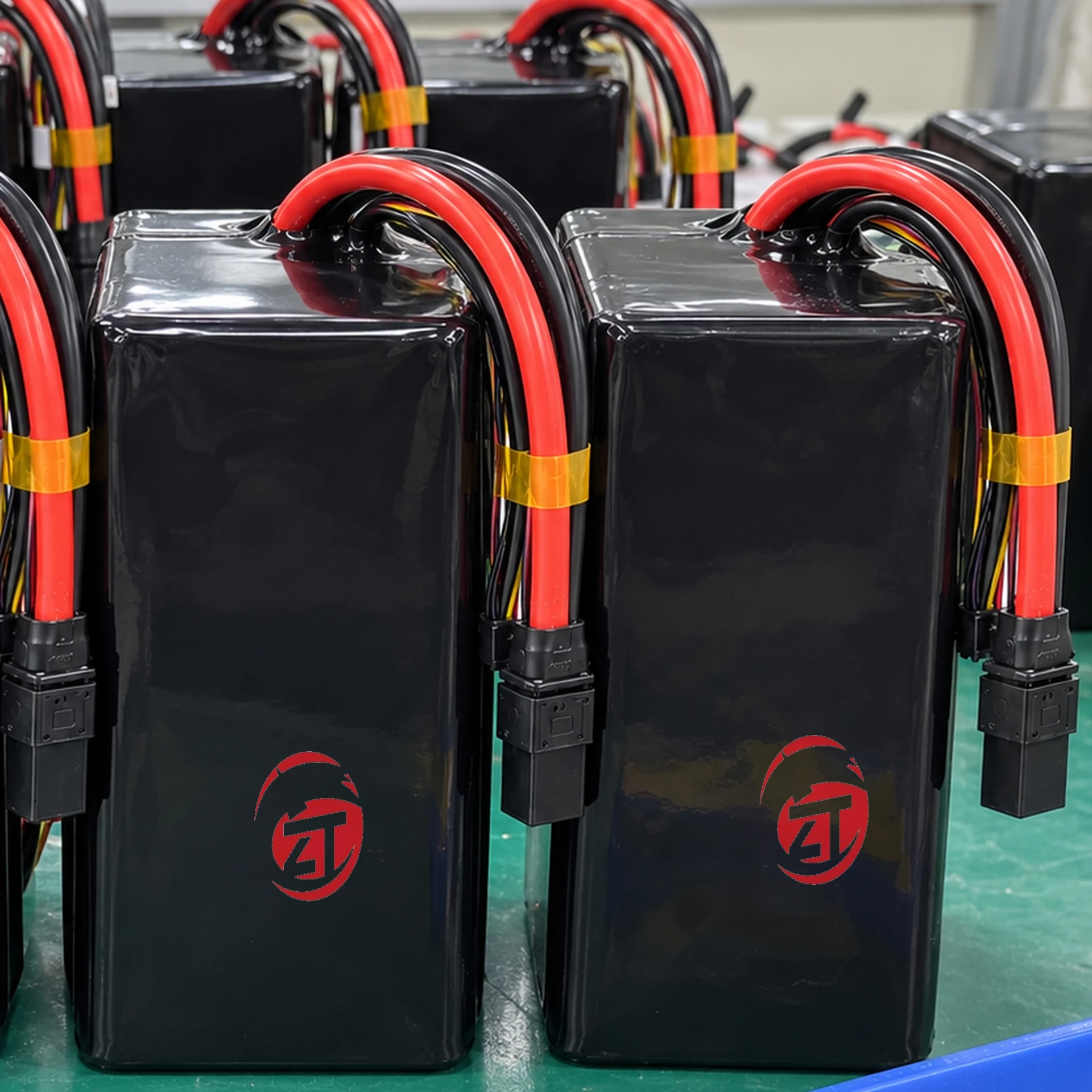

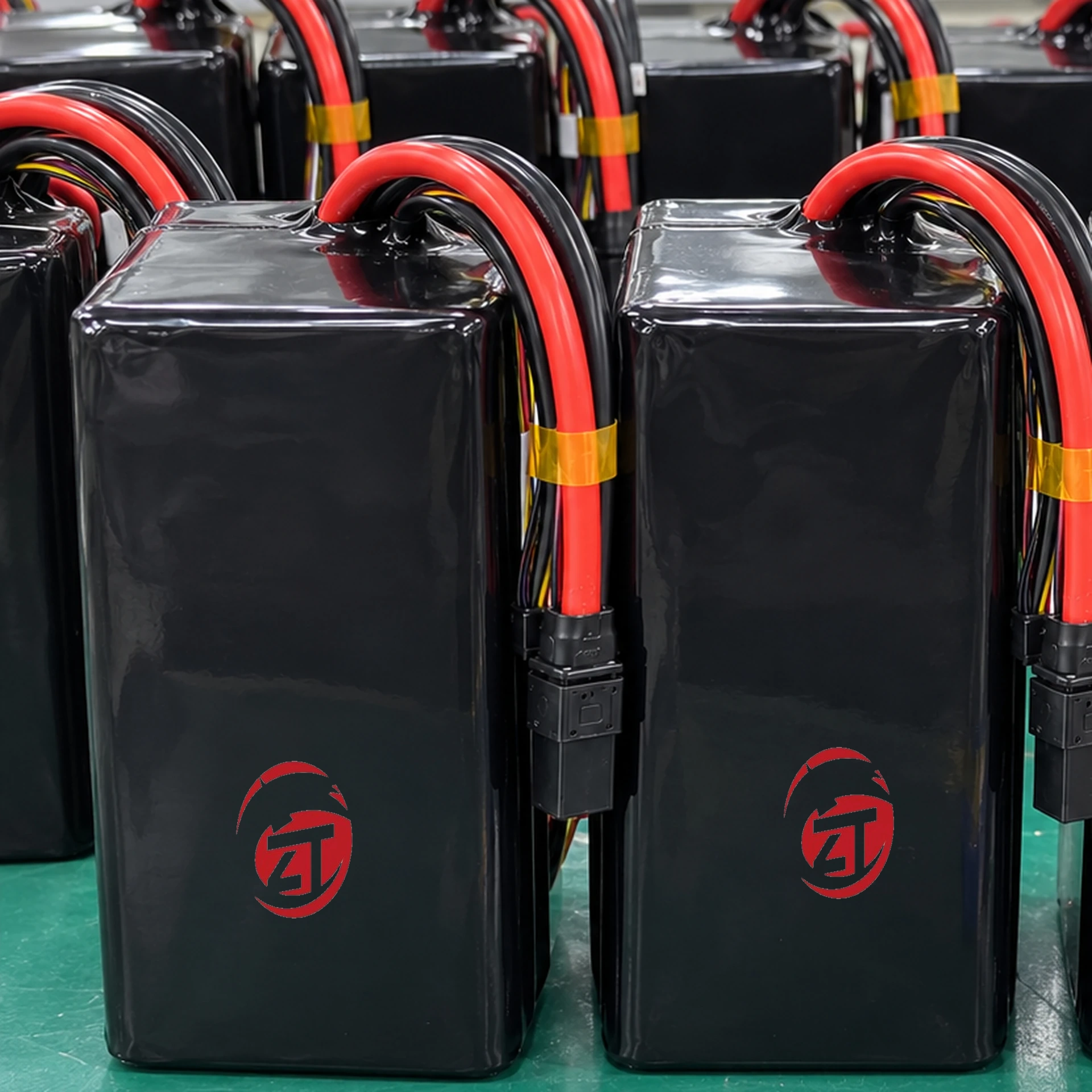

The two parallel strings in the 6S 80000mAh UAV Battery are part of its electrical and mechanical identity. This model has a shorter, wider body than the narrow 21.0V 80Ah pack, alongside a different nominal voltage and mass. Those differences affect tray fit and the charging profile. Comparing capacity alone would overlook the characteristics that determine whether it suits the aircraft.
The 6S2P 80Ah Configuration
The 6S2P 80Ah UAV battery is the 23.1V assembly in this capacity class. Its 7.4kg mass and 155 x 110 x 230mm body need to fit the aircraft’s tray and allowable battery load. The separate 21.0V 80Ah product uses a different cell reference, shape and mass, so the two builds should not share one installation drawing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference configuration | 6S2P-80Ah |
| Product category | semi solid state lithium UAV battery |
| Configuration | 6S2P |
| Nominal voltage | 23.1V |
| Nominal capacity | 80000mAh / 80Ah |
| Nominal energy | 1848Wh |
| Cell energy-density reference | 260Wh/kg cell reference; confirm corresponding cell documentation |
| Pack weight | Approx. 7.4kg |
| Pack size (L x W x H) | 155 x 110 x 230mm |
| Discharge rate shown | 3C / 10C shown on product reference |
| Arithmetic current reference | 240A at 3C; 800A at 10C (arithmetic references only, not verified pack limits) |
| Power / balance interface | High-current power lead and balance interface shown; final mating connector and cable configuration confirmed for the approved order |
| Charging profile | Matched series-count charging; charge voltage/current and charger workflow confirmed for the final configuration |
The energy-density value above is treated as a cell-level reference following the supplier’s clarification. Request the corresponding cell model, specification revision and test conditions with the quotation. Finished-pack weight and external dimensions are separate installation inputs and must not be used to reverse-infer cell energy density.
Product Details
Mission Load Assessment
The 23.1V 80Ah UAV battery can be evaluated for professional aircraft able to carry its mass. A mission assessment includes cruise or hover demand, payload changes and the reserve needed for return and landing. Flight duration is established from aircraft measurements, not from the 80Ah figure alone.
Keep the two 80Ah entries distinct
The purchase and sample records should include the 23.1V reference, 6S2P arrangement and selected enclosure. Check that labels and test records refer to that build. A matching 80000mAh capacity is not enough to reconcile two different catalogue configurations.
Production and Handling Context
Request a Configuration Review
Send the existing battery specification and compartment drawing to New Journey. The quotation can identify this 6S2P option clearly and separate it from the other 80Ah reference before sample purchase.
Compare 6S 80000mAh UAV Battery with related models
| Selection point | 6S 80000mAh UAV Battery | 6S 16000mAh UAV Battery | 6S 22000mAh UAV Battery |
|---|---|---|---|
| Configuration | 6S2P | 6S1P | 6S1P; cell reference CGB8575175-22000mAh |
| Nominal voltage | 23.1V | 22.2V | 22.2V |
| Nominal capacity | 80000mAh / 80Ah | 16000mAh / 16Ah | 22000mAh / 22Ah |
| Nominal energy | 1848Wh | 355.2Wh | 488.4Wh |
FAQ
What should I compare before selecting 6S 80000mAh UAV Battery?
configuration: 6S2P for this model, compared with 6S1P for 6S 16000mAh UAV Battery; nominal voltage: 23.1V for this model, compared with 22.2V for 6S 16000mAh UAV Battery.
Is this the same pack as the 21.0V 6S 80Ah model?
No equivalence has been established. This listing records 6S2P, 23.1V, 1848Wh and approximately 7.4kg, while the other reference records 21.0V and 1680Wh. Keep both configurations separate during sample selection.
What charging voltage and current are specified for this model?
Charging profile: Matched series-count charging; charge voltage/current and charger workflow confirmed for the final configuration. The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
What does the listed weight tell me about installation?
Pack weight: Approx. 7.4kg. Weight alone does not define the battery envelope or mounting points. Obtain the external dimensions and retention drawing for the selected build before changing the aircraft battery bay. Include the terminal position and access needed to secure the battery.
