Product Description

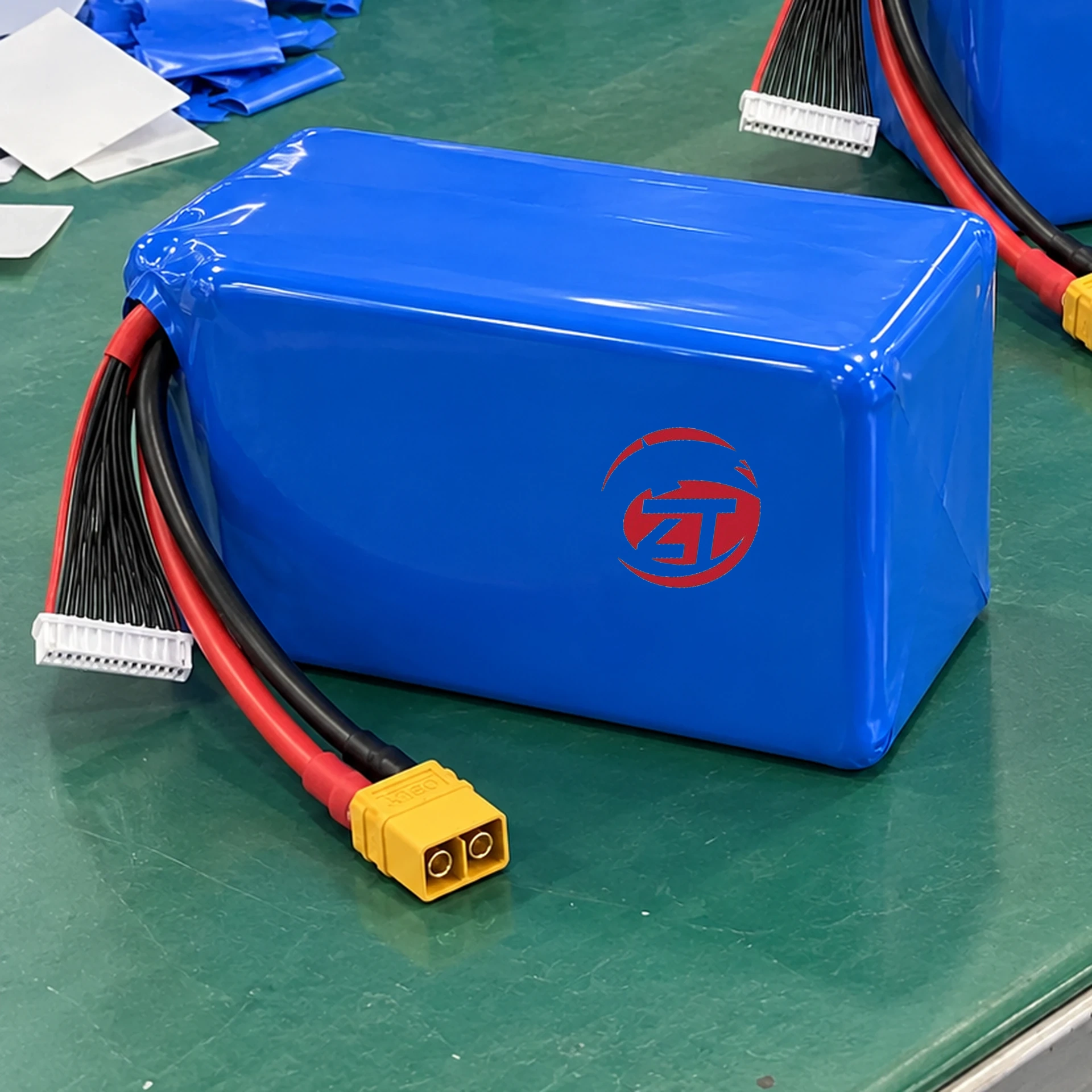

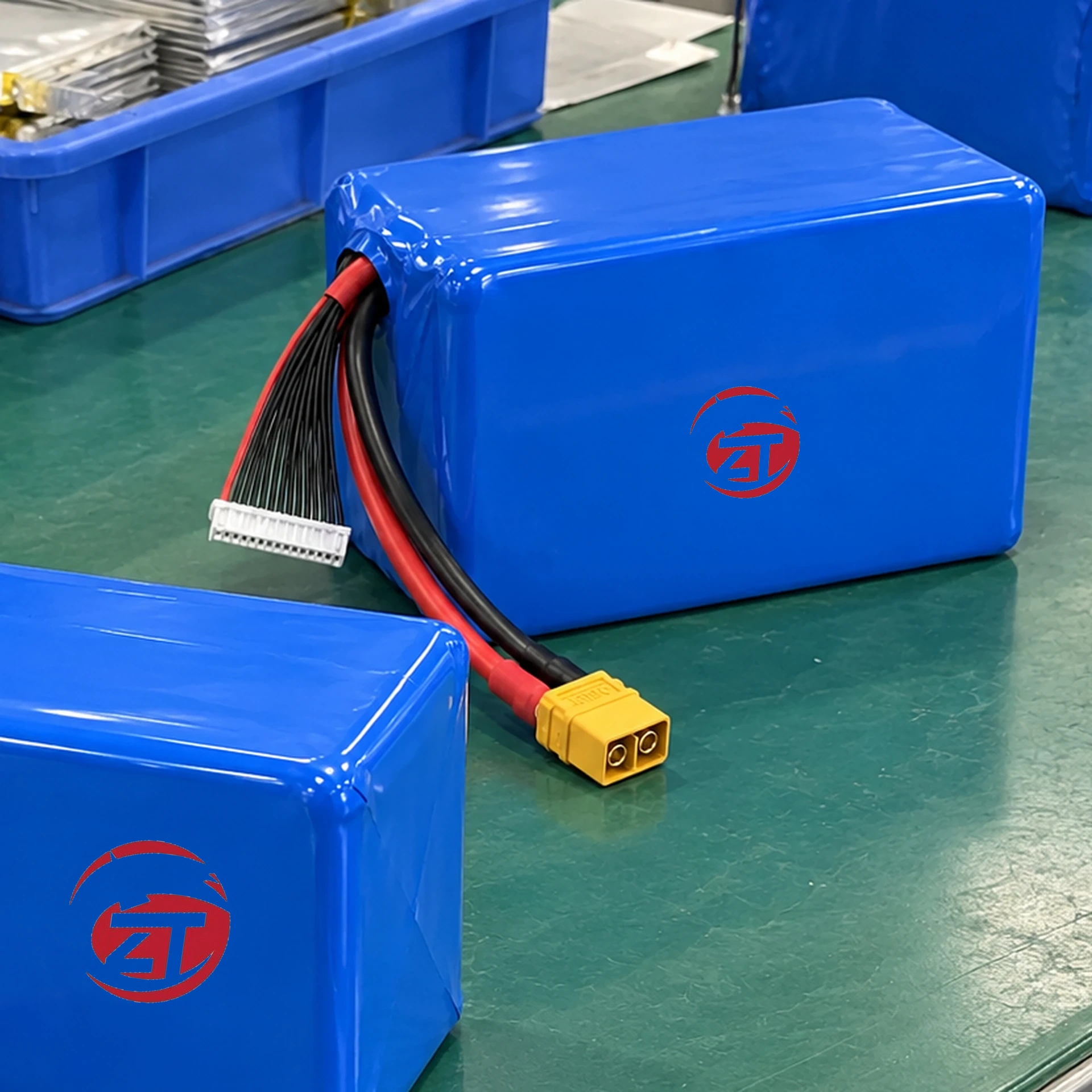

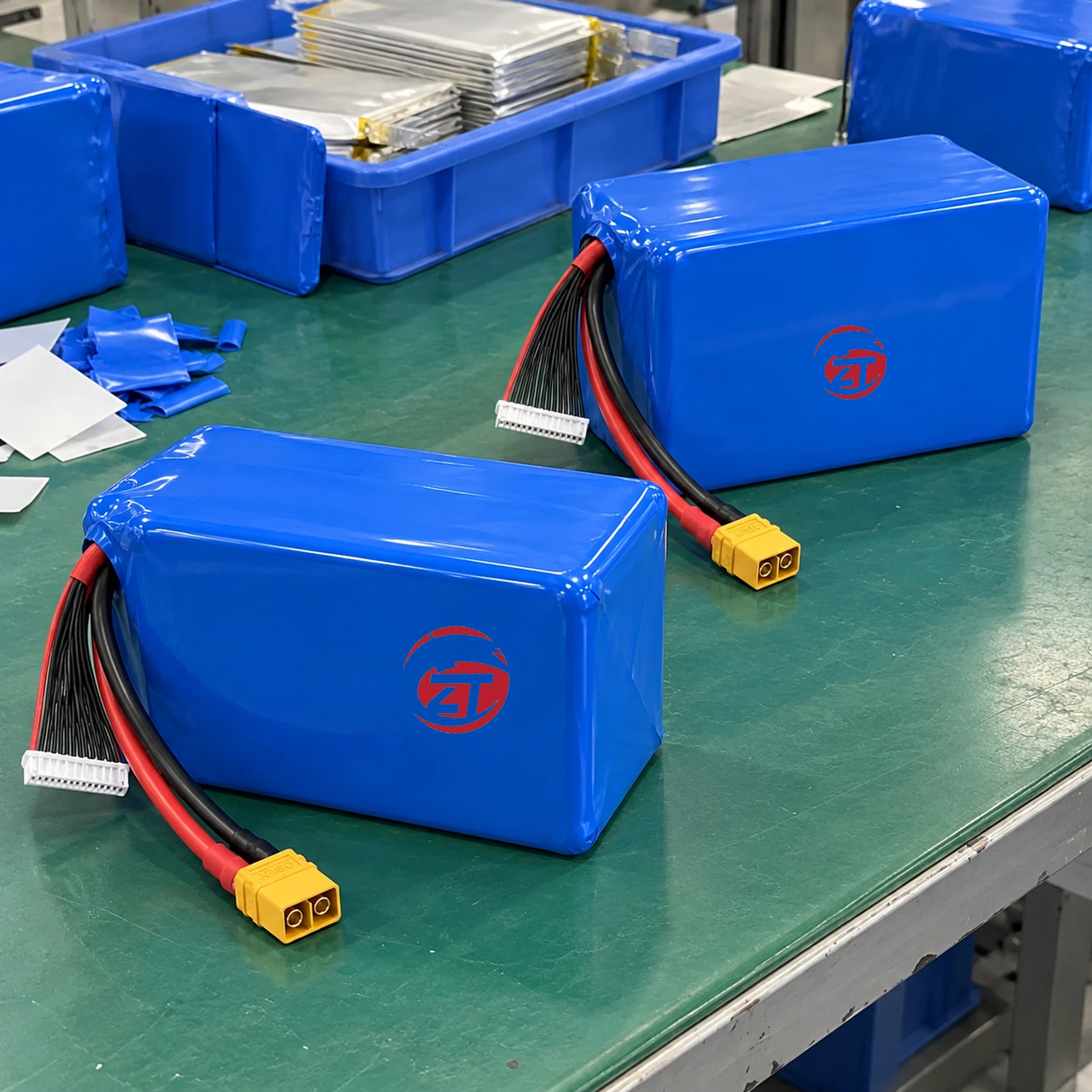

Fourteen series groups provide the voltage architecture of the 14S 30Ah UAV Battery. Its 59.5V charge endpoint is a key selection value for the charger and aircraft electronics. The 158 x 78 x 195mm body is substantially different from the large 14S energy packs, offering a separate installation option where the battery bay and mass allowance are limited.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 14S30Ah |
| Cell designation | 10675175-30000mAh |
| Cell type | Solid state |
| Series configuration | 14S |
| Nominal voltage | 51.8V |
| Capacity | 30Ah / 30000mAh |
| Nominal energy | 1554Wh (nominal voltage × capacity) |
| Cell energy density | 350Wh/kg (cell value) |
| Maximum charge current | 15A (0.5C) |
| Charge cutoff voltage | 59.5V |
| Discharge cutoff voltage | 35.0V |
| Continuous discharge current | 90A (3C) |
| Maximum discharge current | 300A (10C) |
| Condition | Specification |
|---|---|
| Working temperature | -20 to 55°C |
| Storage temperature | -20 to 40°C |
| Storage humidity | <85% RH |
| Cycle-life reference | 500 cycles |
| Mechanical item | Specification |
|---|---|
| Body dimensions (W × T × H) | 158 × 78 × 195mm; each ±5mm |
| Approximate body weight | 4.59kg |
| Optional interface | Configuration |
|---|---|
| Main cable and connector | 10AWG, 150mm; XT90 |
| Balance harness and connector | 22AWG, 150mm; XH-15P (B0–B14) |
Operating-temperature limits do not by themselves define permitted charging temperatures. Apply the approved charging profile, load conditions and finished-harness limits for the ordered configuration.
Product Details
Material Designation and Operating Limits
Judge the 30Ah solid state battery by its specified operating limits and the agreed sample evaluation. The material designation does not establish the finished pack’s response to damage, and it does not replace a test record for the applicable configuration.
Sample Configuration
The sample configuration brings the cell platform, finished body, charging profile and interface into one record. New Journey uses the aircraft requirements to define that scope for quotation. Model-specific conformity documents and any agreed service terms should refer to the same ordered build.
Verify the charging and balance connection
Use the agreed 14S wiring record when checking the main and balance leads. Confirm polarity, connector orientation and the complete pin assignment before powered sample evaluation. Record the charger settings used for any capacity result so repeat batches are compared on the same basis.

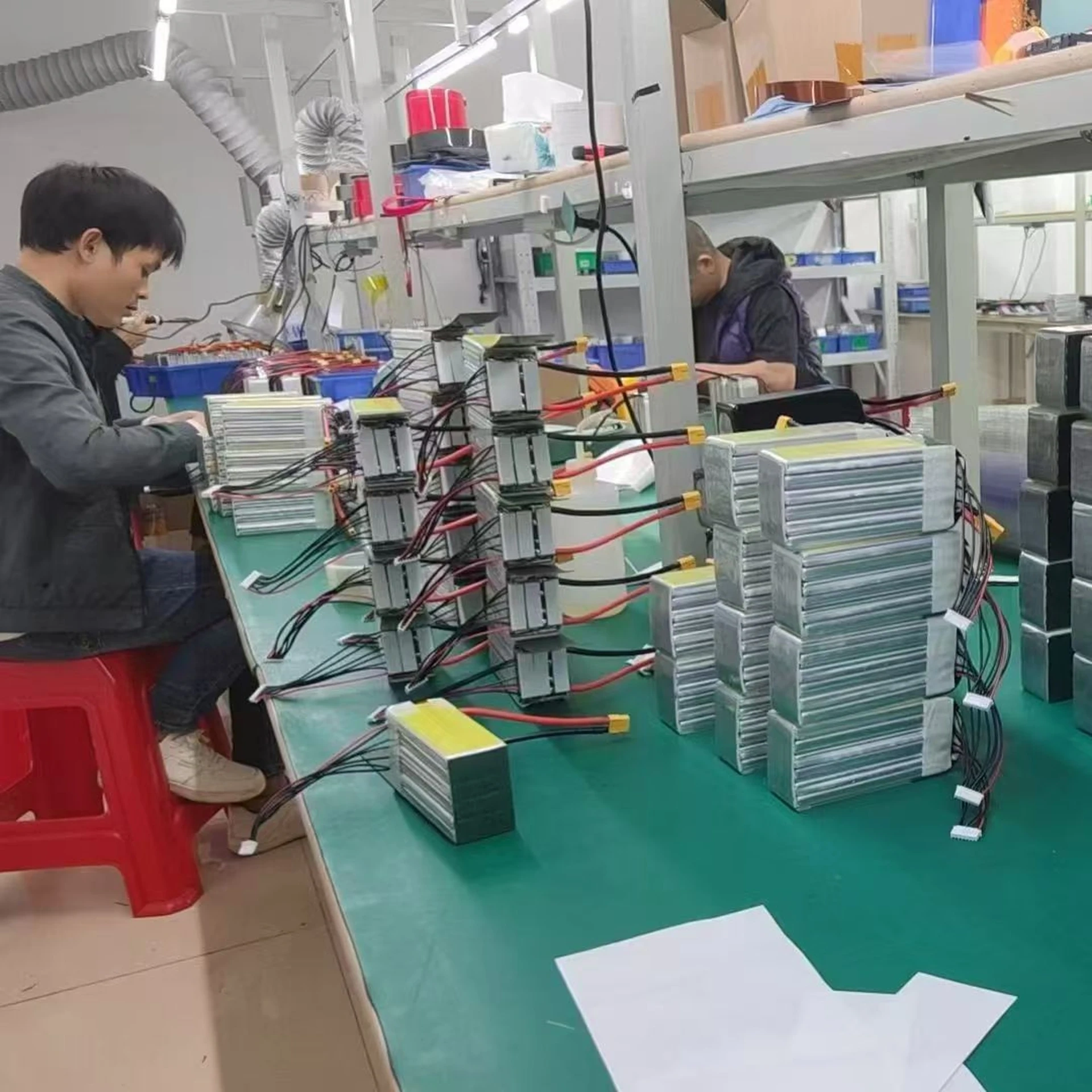

Production and Handling Context
Request a Configuration Review
For a purchase proposal, send the charger output data, controller voltage limits and continuous load. New Journey can then review the main harness, balance connection and sample configuration as one system.
Compare 14S 30Ah UAV Battery with related models
| Selection point | 14S 30Ah UAV Battery | 14S 105Ah UAV Battery | 14S 36000mAh UAV Battery |
|---|---|---|---|
| Nominal voltage | 51.8V | 51.8V | 51.8V |
| Nominal energy | 1554Wh (nominal voltage × capacity) | 5439Wh | 1864.8Wh |
FAQ
What should the first technical inquiry contain?
For the selected battery, send the full aircraft voltage window, charger details, continuous and transient current, available mounting envelope and target quantity. If comparing 30Ah with 36Ah, include the payload and mass budget so that the recommendation is based on a constraint rather than capacity alone.
What charging voltage and current are specified for this model?
Charge cutoff voltage: 59.5V; Maximum charge current: 15A (0.5C). The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Body dimensions (W × T × H): 158 × 78 × 195mm; each ±5mm; Approximate body weight: 4.59kg. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
Which connection details should be fixed for this battery?
Main cable and connector: 10AWG, 150mm; XT90; Balance harness and connector: 22AWG, 150mm; XH-15P (B0–B14). Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
