Product Description
Two output routes do not create two independent batteries. In the 6S 150Ah UAV Battery, both routes draw from the same 150Ah energy source. The harness layout therefore starts with the combined load and the current through each branch. An approximately 8.2kg, 410mm-high body also needs secure support, accessible connections and a practical removal path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6S150Ah |
| Cell designation | 155118365-150000mAh |
| Cell type | Semi solid |
| Series configuration | 6S |
| Nominal voltage | 21.0V |
| Capacity | 150Ah / 150000mAh |
| Nominal energy | 3150Wh (nominal voltage × capacity) |
| Cell energy density | 400Wh/kg (cell value) |
| Maximum charge current | 150A (1C) |
| Charge cutoff voltage | 25.8V |
| Discharge cutoff voltage | 15.0V at T ≥ 0°C; 13.2V at T < 0°C |
| Continuous discharge current | 300A (2C) |
| Maximum discharge current | 750A (5C), 10 seconds, SOC > 50% |
| Condition | Specification |
|---|---|
| Working temperature | -40 to 55°C |
| Storage temperature | -20 to 40°C |
| Storage humidity | <85% RH |
| Cycle-life reference | 500 cycles |
| Mechanical item | Specification |
|---|---|
| Body dimensions (W × T × H) | 105 × 125 × 410mm; each ±5mm |
| Approximate body weight | 8.2kg |
| Optional interface | Configuration |
|---|---|
| Main cable and connector | 6AWG, 150mm × 2 output pairs; AS150 |
| Balance harness and connector | 22AWG, 150mm; XH-7P (B0–B6) |
Operating-temperature limits do not by themselves define permitted charging temperatures. Apply the approved charging profile, load conditions and finished-harness limits for the ordered configuration.
Product Details
Supporting the Battery Body
The 150Ah semi solid battery designation does not make pouch edges or cable exits structural attachment points. Use the approved body support and restraint arrangement, leaving the power and balance leads free from lifting or mounting loads.

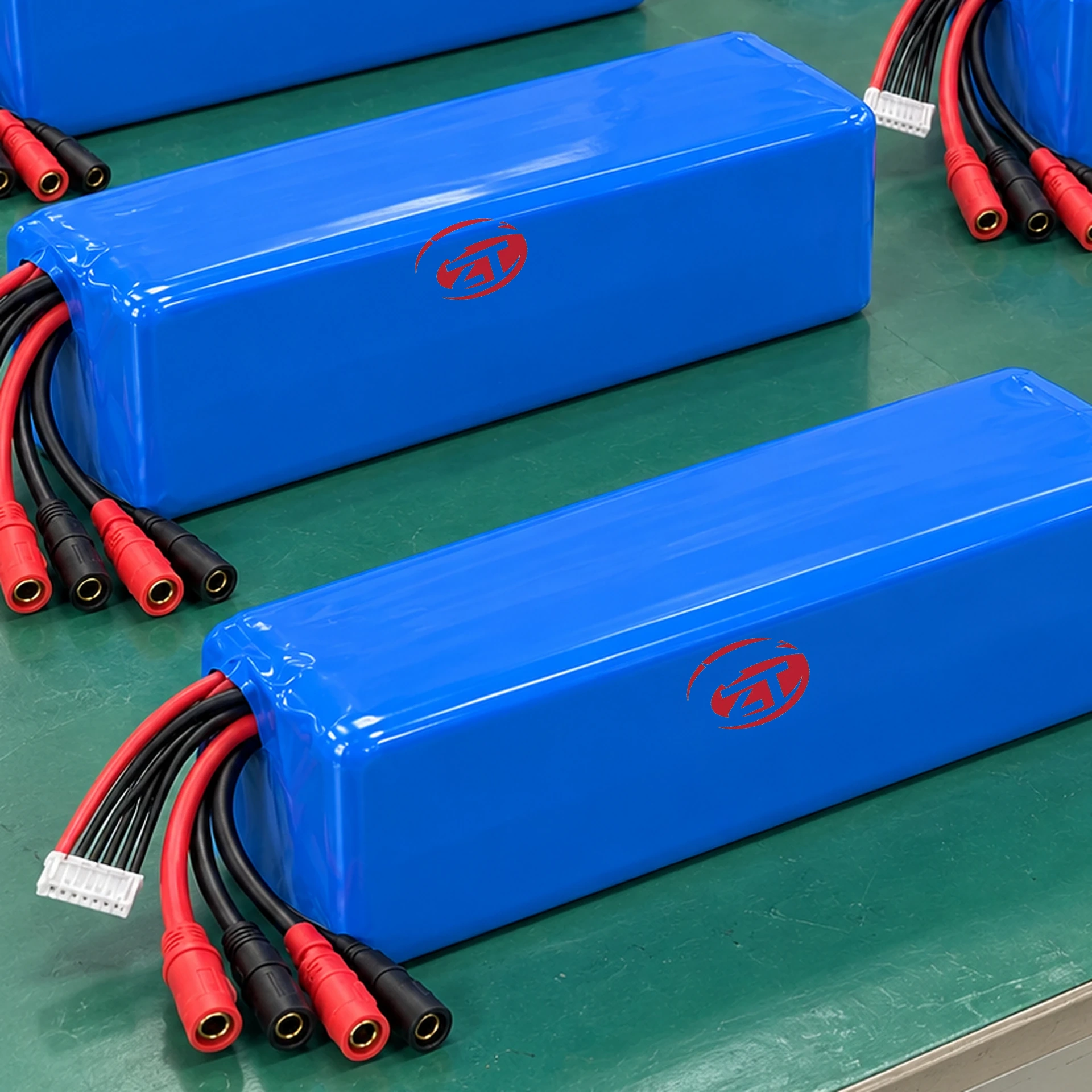

Inspect both output branches
For batch acceptance, compare both output pairs with the approved routing and polarity record. Check that neither branch carries the mechanical weight of the pack and that cable movement does not load the exit point. Branch-current assumptions should remain visible in the agreed configuration.

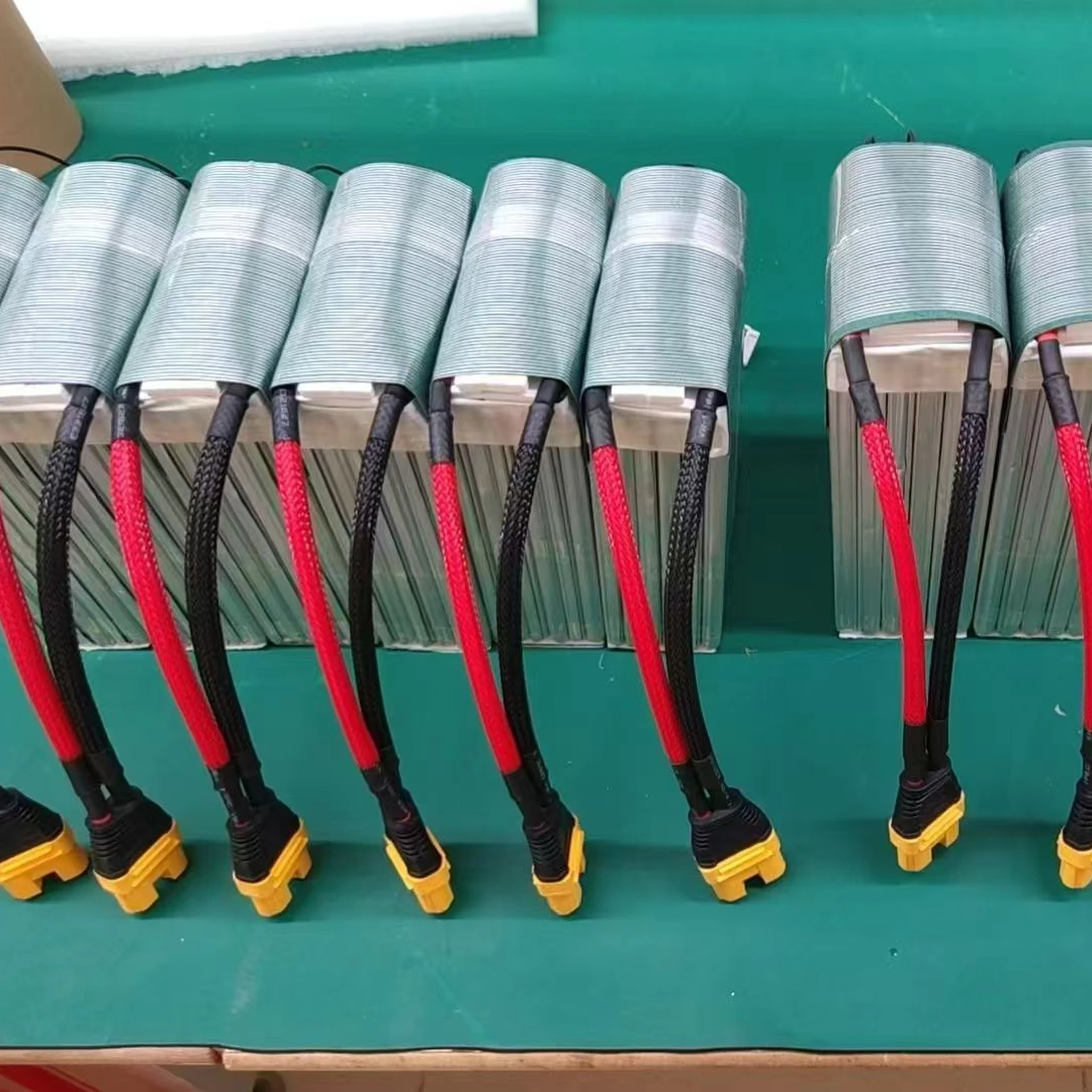

Production and Handling Context
Discuss the Sample and Order
Send New Journey the two-branch power diagram for an OEM quotation. Include the load on each route, permitted cable length and battery mounting arrangement so the offer describes the complete harness.
Compare 6S 150Ah UAV Battery with related models
| Selection point | 6S 150Ah UAV Battery | 6S 16000mAh UAV Battery | 6S 22000mAh UAV Battery |
|---|---|---|---|
| Nominal voltage | 21.0V | 22.2V | 22.2V |
| Nominal energy | 3150Wh (nominal voltage × capacity) | 355.2Wh | 488.4Wh |
| Cell energy density | 400Wh/kg (cell value) | 270Wh/kg cell value | 350Wh/kg individual-cell value |
| Charge cutoff voltage | 25.8V | 25.2V | 25.5V |
| Discharge cutoff voltage | 15.0V at T ≥ 0°C; 13.2V at T < 0°C | 15.0V | 15.0V |
FAQ
Which details are essential in a dual-lead quotation request?
For the selected battery, identify the loads on each route, combined continuous and transient demand, required cable lengths, plug types, polarity and charge connection. Include a drawing of the mounting area.
Can I reuse a charger with this battery?
Charge cutoff voltage: 25.8V; Maximum charge current: 150A (1C). The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Body dimensions (W × T × H): 105 × 125 × 410mm; each ±5mm; Approximate body weight: 8.2kg. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
Which connection details should be fixed for this battery?
Main cable and connector: 6AWG, 150mm × 2 output pairs; AS150; Balance harness and connector: 22AWG, 150mm; XH-7P (B0–B6). Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
