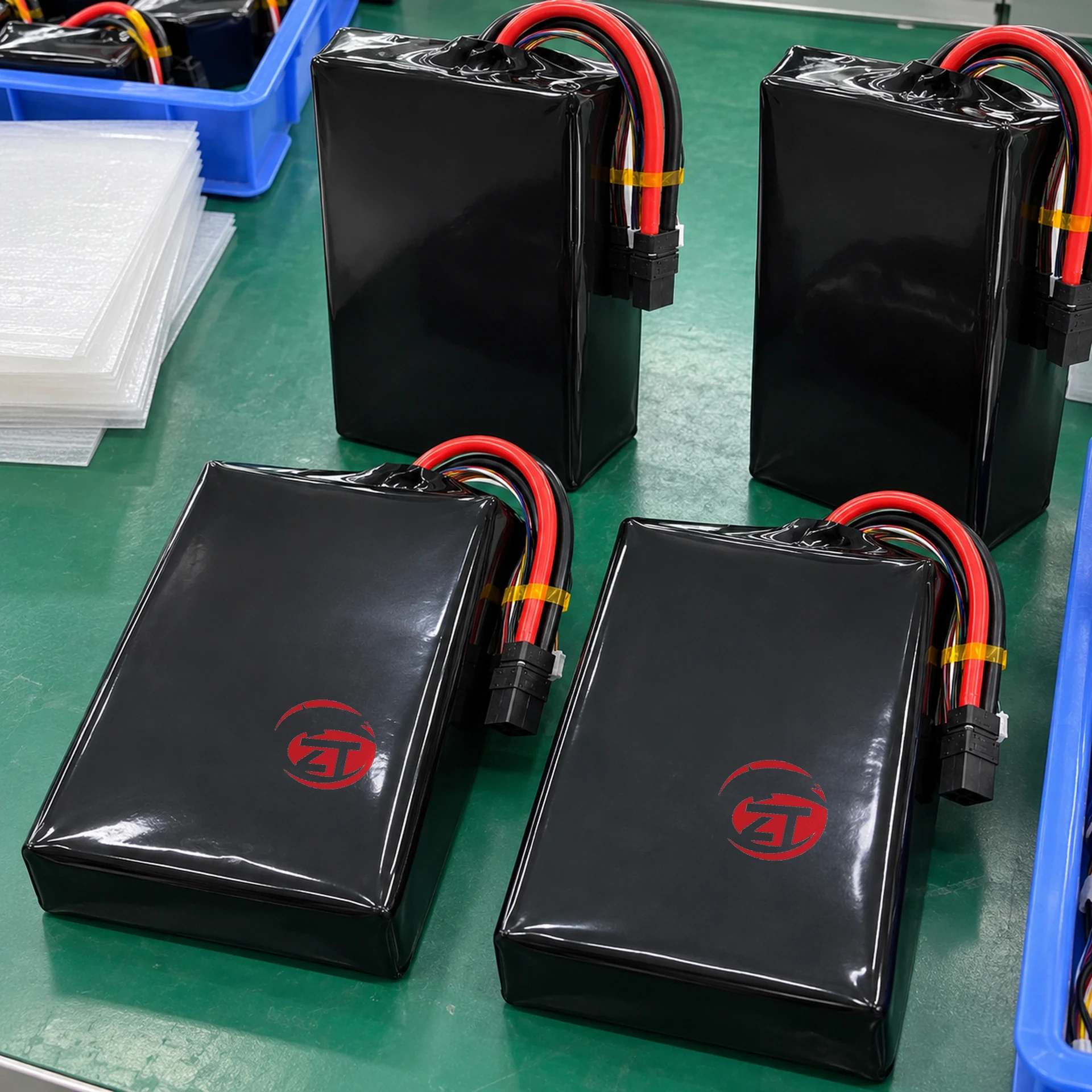

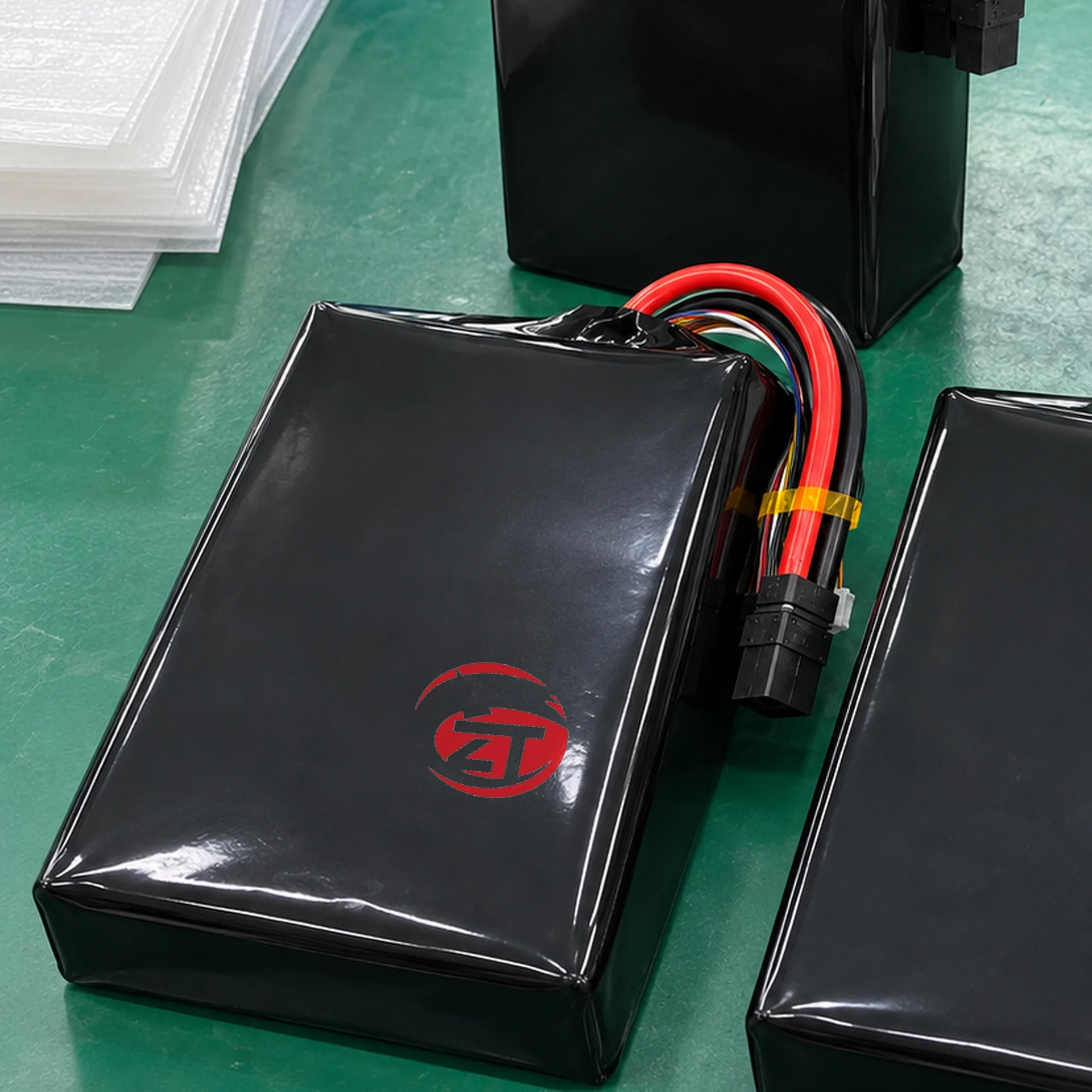

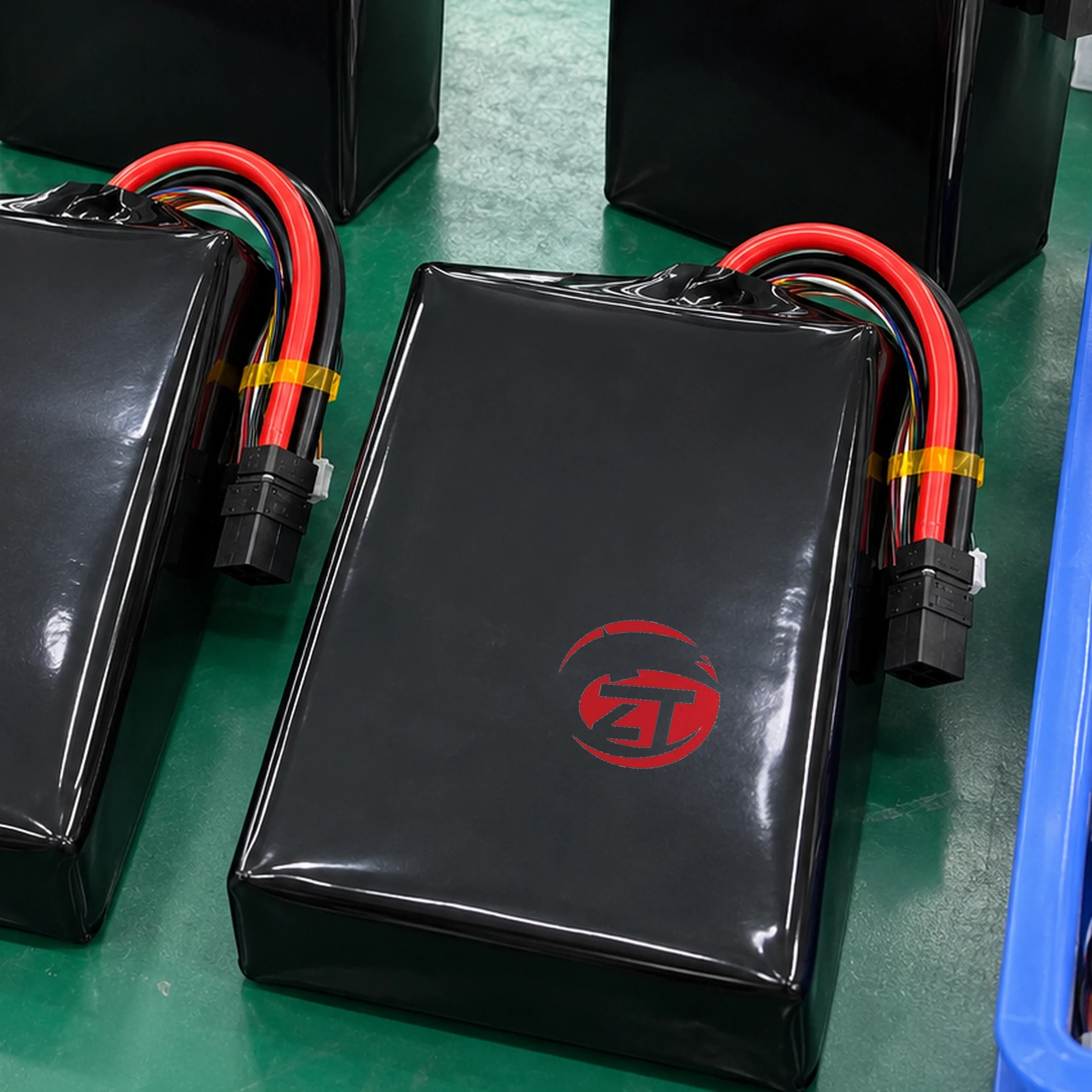

Product Description
Geometry is a useful starting point for the 6S 66000mAh UAV Battery. The 60mm dimension produces a different mounting problem from a tall, narrow battery, even where nominal energy is similar. The 23.7V reference also requires a model-specific charge profile. Electrical limits, load duration and body restraint should be settled before drawing endurance conclusions from the 66Ah capacity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference configuration | 6S2P-66Ah |
| Product category | semi solid state lithium UAV battery |
| Configuration | 6S2P |
| Nominal voltage | 23.7V |
| Nominal capacity | 66000mAh / 66Ah |
| Nominal energy | 1564.2Wh |
| Cell energy-density reference | 300Wh/kg cell reference; confirm corresponding cell documentation |
| Pack weight | Approx. 5.35kg |
| Pack size (L x W x H) | 60 x 168 x 255mm |
| Discharge rate shown | 3C / 10C shown on product reference |
| Arithmetic current reference | 198A at 3C; 660A at 10C (arithmetic references only, not verified pack limits) |
| Power / balance interface | High-current power lead and balance interface shown; final mating connector and cable configuration confirmed for the approved order |
| Charging profile | Matched series-count charging; charge voltage/current and charger workflow confirmed for the final configuration |
The energy-density value above is treated as a cell-level reference following the supplier’s clarification. Request the corresponding cell model, specification revision and test conditions with the quotation. Finished-pack weight and external dimensions are separate installation inputs and must not be used to reverse-infer cell energy density.
Product Details
Use a fit check before the batch
Record the complete sample envelope and restraint position in the aircraft. Check that connector access remains usable after the larger pack is fitted. Use that approved mounting arrangement for the customized order instead of extending a smaller pack’s dimensions by assumption.

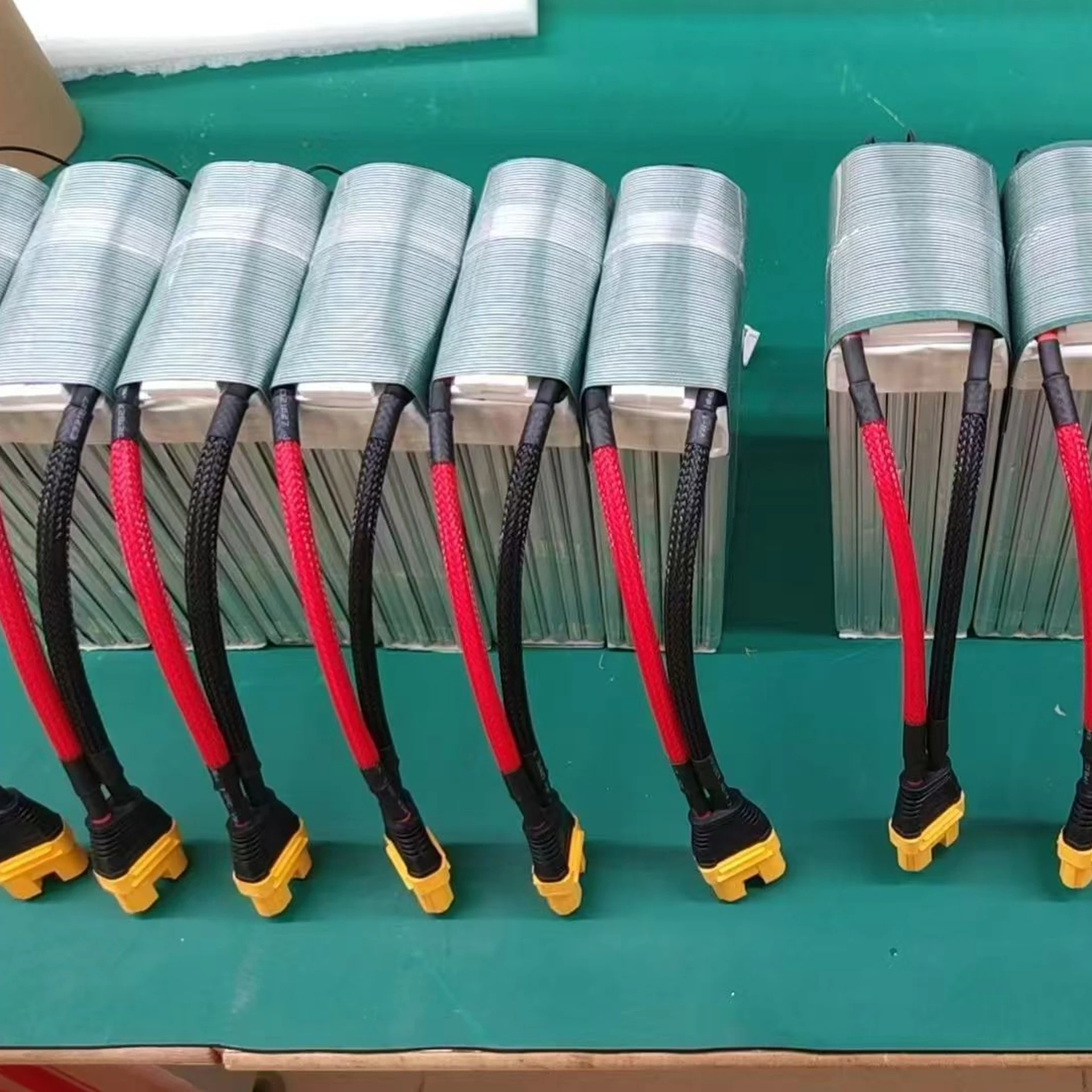

Production and Handling Context
Discuss the Sample and Order
For a customized quotation, send battery-bay dimensions and mounting constraints with measured load data. New Journey can assess the 66Ah step against the aircraft’s actual capacity-upgrade objective.
Compare 6S 66000mAh UAV Battery with related models
| Selection point | 6S 66000mAh UAV Battery | 6S 16000mAh UAV Battery | 6S 22000mAh UAV Battery |
|---|---|---|---|
| Configuration | 6S2P | 6S1P | 6S1P; cell reference CGB8575175-22000mAh |
| Nominal voltage | 23.7V | 22.2V | 22.2V |
| Nominal capacity | 66000mAh / 66Ah | 16000mAh / 16Ah | 22000mAh / 22Ah |
| Nominal energy | 1564.2Wh | 355.2Wh | 488.4Wh |
FAQ
What should I compare before selecting 6S 66000mAh UAV Battery?
configuration: 6S2P for this model, compared with 6S1P for 6S 16000mAh UAV Battery; nominal voltage: 23.7V for this model, compared with 22.2V for 6S 16000mAh UAV Battery.
Can I reuse a charger with this battery?
Charging profile: Matched series-count charging; charge voltage/current and charger workflow confirmed for the final configuration. The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
What does the listed weight tell me about installation?
Pack weight: Approx. 5.35kg. Weight alone does not define the battery envelope or mounting points. Obtain the external dimensions and retention drawing for the selected build before changing the aircraft battery bay. Include the terminal position and access needed to secure the battery.
Which connection details should be fixed for this battery?
Power / balance interface: High-current power lead and balance interface shown; final mating connector and cable configuration confirmed for the approved order. Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
