Product Description
The 6S 4200mAh FPV Battery is a 22.2V semi-solid pack for a defined FPV aircraft load. Its 4200mAh capacity and approximately 574g mass form a practical energy-versus-weight comparison, while the 25.2V charging endpoint identifies the electrical platform. Mounting needs to restrain the body and leave both the power connection and any required balancing access unobstructed.
Technical Specifications
| Parameter | Specified value |
|---|---|
| Cell designation | 7643125-4200mAh |
| Cell type | semi solid |
| Series configuration | 6S |
| Nominal capacity | 4200mAh / 4.2Ah |
| Nominal voltage | 22.2V |
| Nominal energy | 93.24Wh |
| Maximum charge current | 12.6A (3C) |
| Charge cut-off voltage | 25.2V |
| Discharge cut-off voltage | 18.0V |
| Continuous discharge | 147A (35C) |
| Peak discharge | 294A (70C), for no more than 3 seconds |
| Cycle-life reference | 200 cycles |
| Condition | Specified range |
|---|---|
| Charge temperature | 0–55°C |
| Discharge temperature | −20–60°C |
| Storage temperature | 0–35°C |
| Storage humidity | Below 85% RH |
| Mechanical item | Specified value |
|---|---|
| Width W / thickness T / height H | 45±5mm / 47±5mm / 135±5mm |
| Pack weight | Approximately 574g |
| Optional main connection | Reference configuration |
|---|---|
| Main cable | 14AWG, 100mm |
| Power connector | XT60 |
Operating-temperature limits do not by themselves define permitted charging temperatures. Apply the approved charging profile, load conditions and finished-harness limits for the ordered configuration.
Product Details

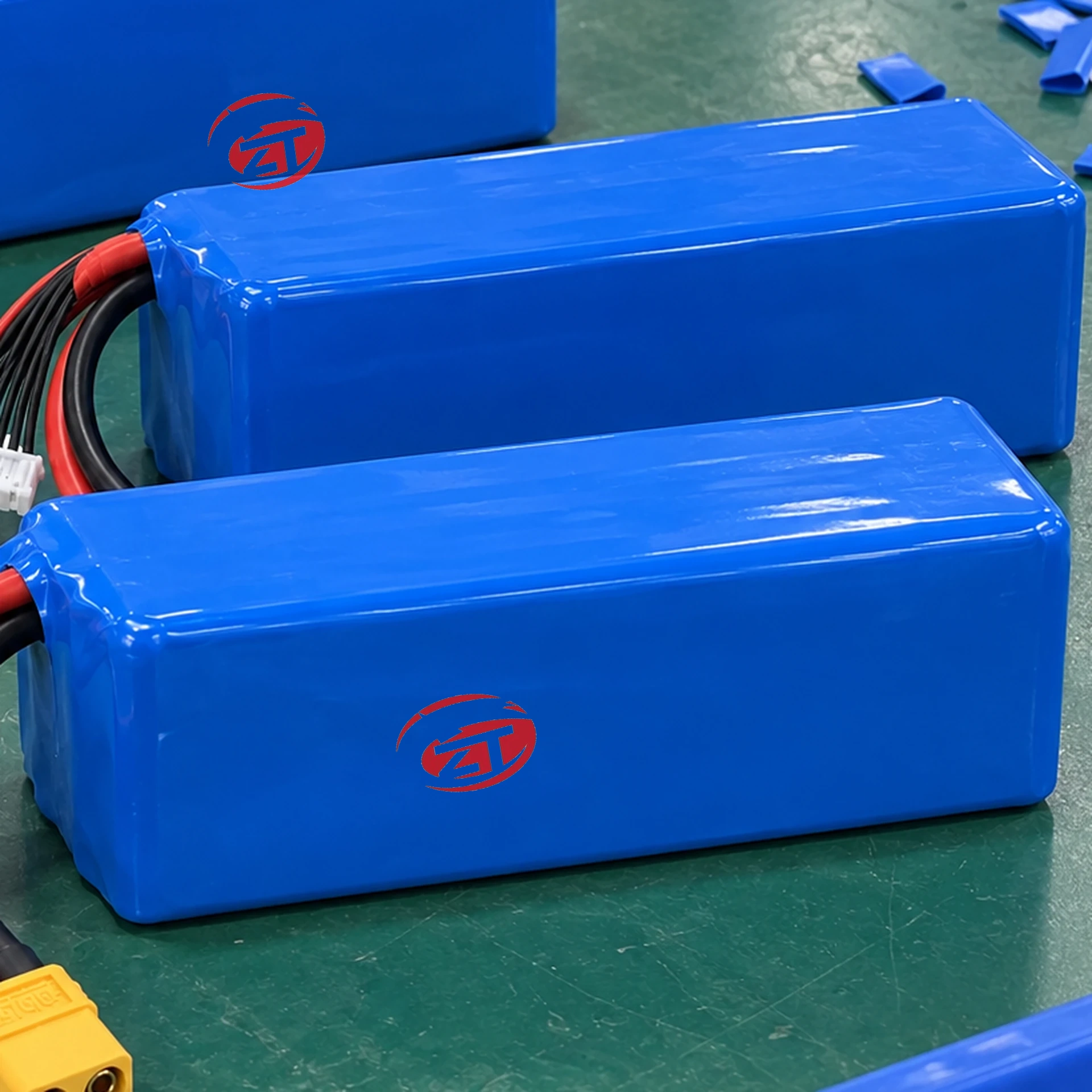

Inspect restraint and lead clearance
The sample-fit check should show how the pack is restrained and how the leads move when connected. Compare those points with the agreed airframe layout before a bulk order. The finished harness and connector arrangement still need approval for the stated current demand.
Production and Handling Context
Prepare a Product Enquiry
Provide the airframe drawing, allowable battery mass and sustained flight current for a quotation. New Journey can review the sample’s mounting and interface instead of selecting it from the C-rate alone.
Compare 6S 4200mAh FPV Battery with related models
| Selection point | 6S 4200mAh FPV Battery | 6S 3200mAh FPV Battery | 6S 9000mAh FPV Battery |
|---|---|---|---|
| Nominal capacity | 4200mAh / 4.2Ah | 3200mAh | 9000mAh |
| Nominal voltage | 22.2V | 22.2V | 23.7V |
| Nominal energy | 93.24Wh | 71.04Wh | 213.3Wh |
| Pack weight | Approximately 574g | Approx. 456g | Approx. 824g |
FAQ
What should I compare before selecting 6S 4200mAh FPV Battery?
nominal capacity: 4200mAh / 4.2Ah for this model, compared with 3200mAh for 6S 3200mAh FPV Battery; nominal energy: 93.24Wh for this model, compared with 71.04Wh for 6S 3200mAh FPV Battery.
What charger information is needed for this battery?
Charge cut-off voltage: 25.2V; Maximum charge current: 12.6A (3C). The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Width W / thickness T / height H: 45±5mm / 47±5mm / 135±5mm; Pack weight: Approximately 574g. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
Which connection details should be fixed for this battery?

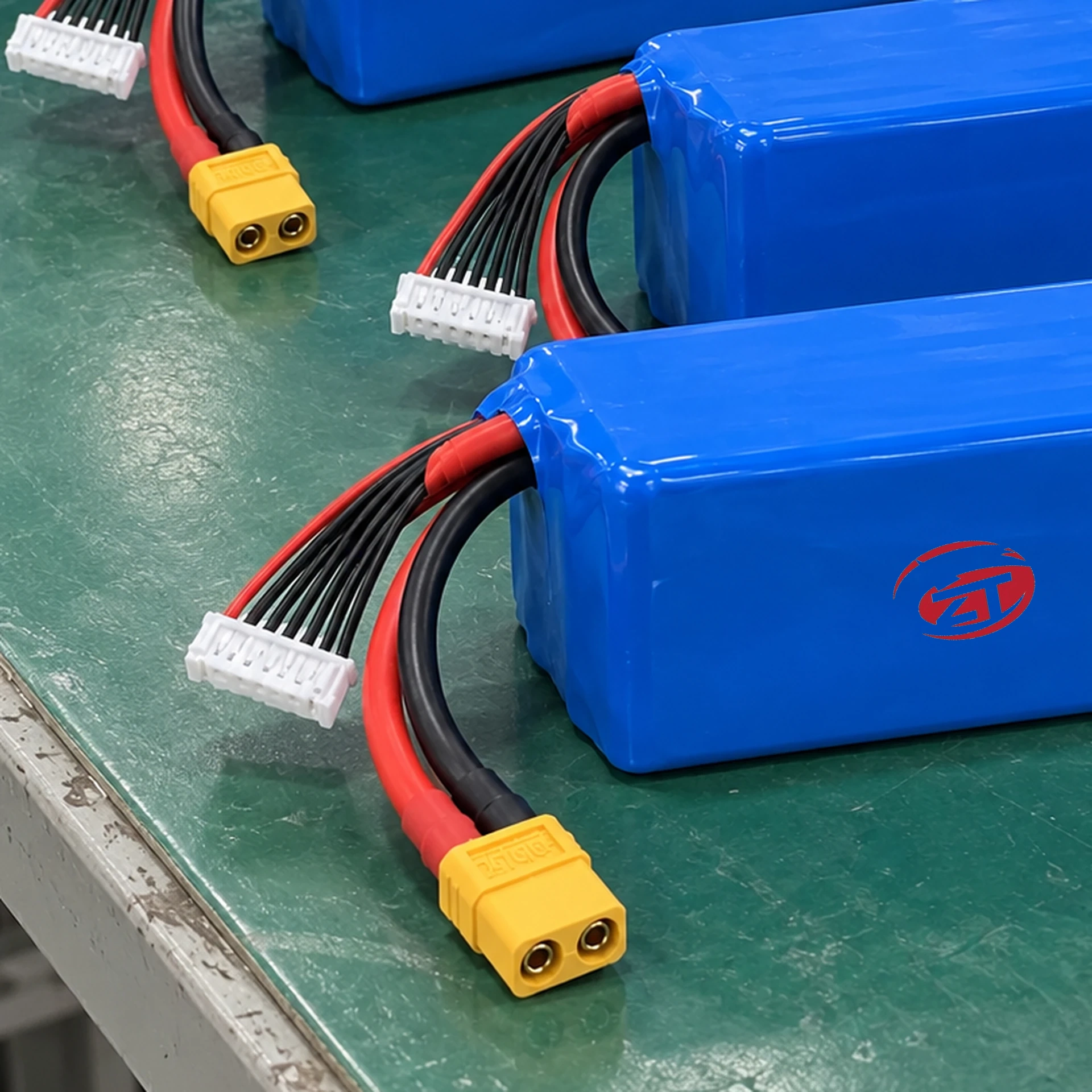

Main cable: 14AWG, 100mm; Power connector: XT60. Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
