Product Description

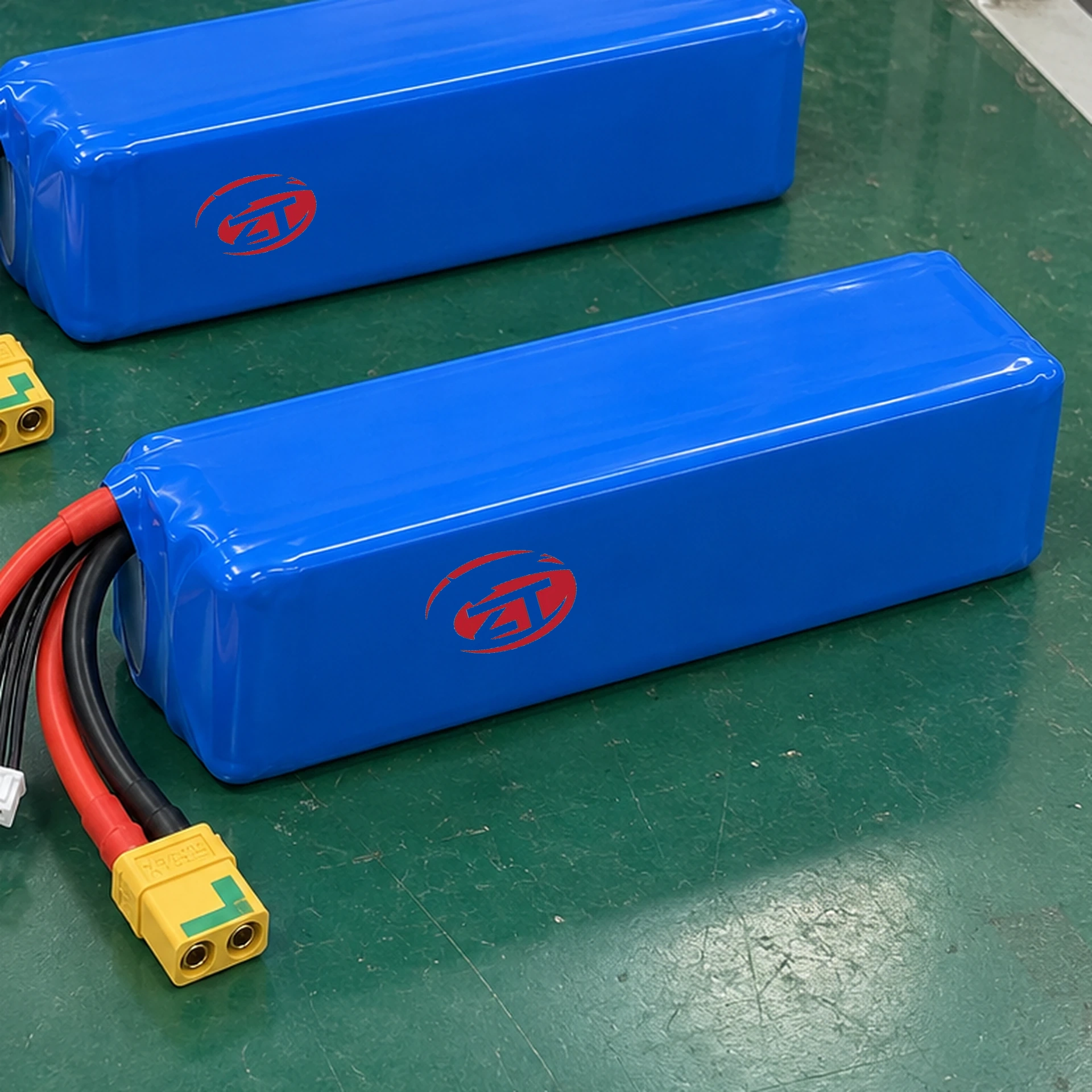

The 6S 8000mAh FPV Battery uses a high-voltage six-series configuration. Its 26.4V endpoint corresponds to 4.4V per series group, so a generic 6S charging label is not enough to select equipment. The long, 181mm body dimension is another practical distinction. Power and balance connections need accessible routing without using the wires to support the pack.
Technical Specifications
| Parameter | Specified value |
|---|---|
| Cell designation | 7359158-8000mAh |
| Cell system / series | semi solid / 6S |
| Nominal capacity | 8000mAh / 8Ah |
| Nominal voltage / energy | 23.1V / 184.8Wh |
| Maximum charge current | 8.0A (1C) |
| Charge cut-off voltage | 26.4V |
| Discharge cut-off voltage | 18.0V |
| Continuous discharge rating | 200A (25C) |
| Peak discharge rating | 400A (50C), for no more than 2 seconds |
| Cycle-life reference | 500 cycles; test basis to be agreed |
| Condition | Specified range |
|---|---|
| Charging temperature | −10 to 45°C |
| Discharging temperature | −20 to 60°C |
| Storage temperature | −20 to 35°C |
| Storage humidity | Below 75% RH |
| Mechanical item | Specified value |
|---|---|
| Width W / thickness T / height H | 45±3mm / 62±3mm / 181±3mm |
| Pack weight | Approximately 960g |
| Optional item | Reference configuration |
|---|---|
| Main power lead | 10AWG, 100mm |
| Power connector | XT90S |
| Balance harness | 22AWG, 100mm |
| Balance connector | XH-7P (B0–B6) |
Operating-temperature limits do not by themselves define permitted charging temperatures. Apply the approved charging profile, load conditions and finished-harness limits for the ordered configuration.
Product Details
Keep charge settings with test results

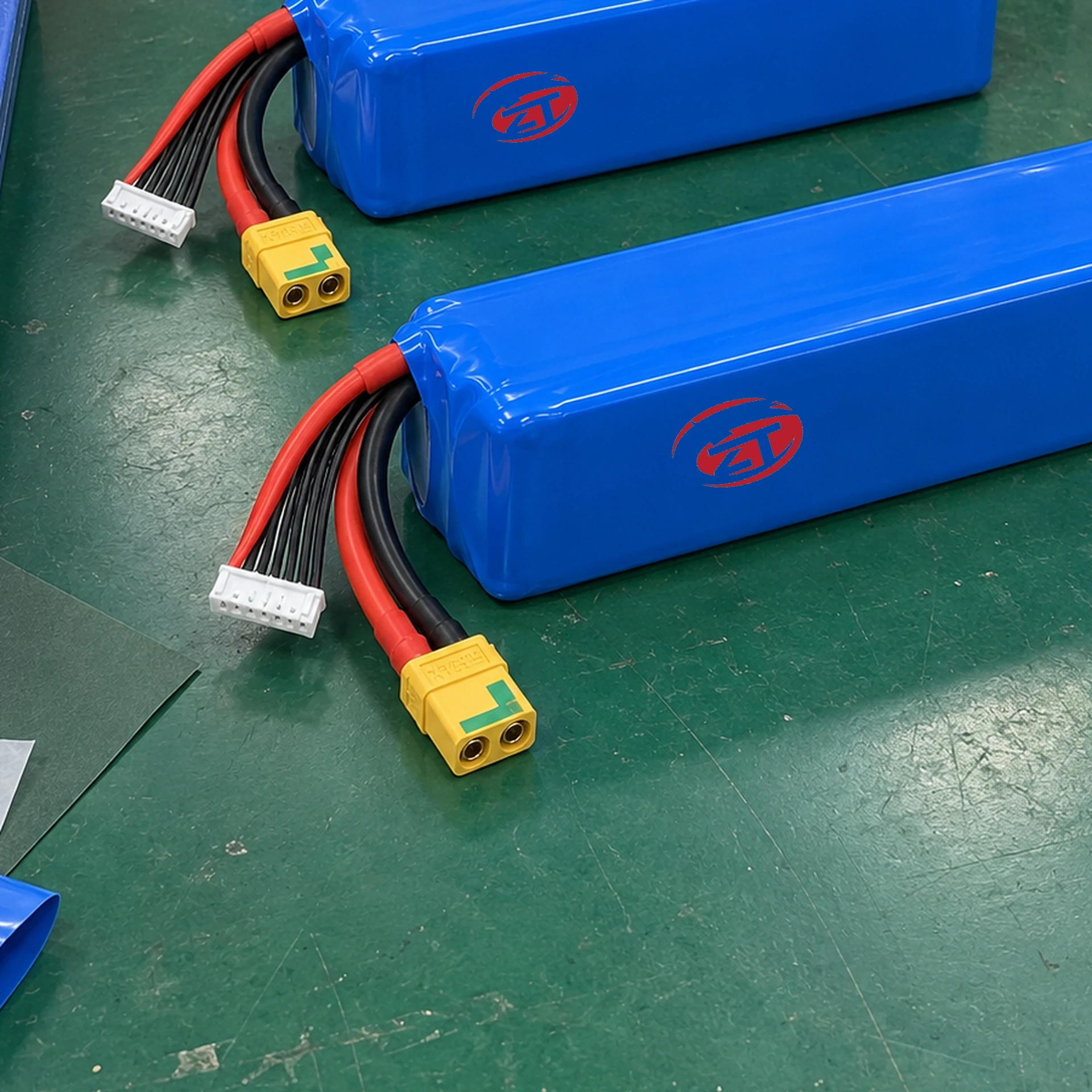

For this high-voltage reference, record the approved charge profile alongside capacity and voltage observations. Sample checks also need to cover XT90S polarity, lead exit and the balance connection. Retain the same settings when comparing a later purchase with the approved sample.
Production and Handling Context
Discuss the Sample and Order
Send the original battery label, charger settings and measured flight-current profile. New Journey can quote the 8000mAh option with the charging and interface questions addressed before sample testing.
Compare 6S 8000mAh FPV Battery with related models
| Selection point | 6S 8000mAh FPV Battery | 6S 3200mAh FPV Battery | 6S 9000mAh FPV Battery |
|---|---|---|---|
| Nominal capacity | 8000mAh / 8Ah | 3200mAh | 9000mAh |
| Pack weight | Approximately 960g | Approx. 456g | Approx. 824g |
FAQ
How are purchase and shipment terms determined?
Sample availability, minimum quantity, lead time and warranty are agreed by quotation. Transport documents and carrier acceptance must be checked for the exact configuration, destination and shipping route. An New Journey selected battery order should identify the approved electrical configuration and mounting envelope. Record sample acceptance criteria with the packing arrangement so repeat deliveries can be checked against the same specification.
Can I reuse a charger with this battery?
Charge cut-off voltage: 26.4V; Maximum charge current: 8.0A (1C). The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Width W / thickness T / height H: 45±3mm / 62±3mm / 181±3mm; Pack weight: Approximately 960g. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
Which connection details should be fixed for this battery?
Main power lead: 10AWG, 100mm; Power connector: XT90S. Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
