Product Description

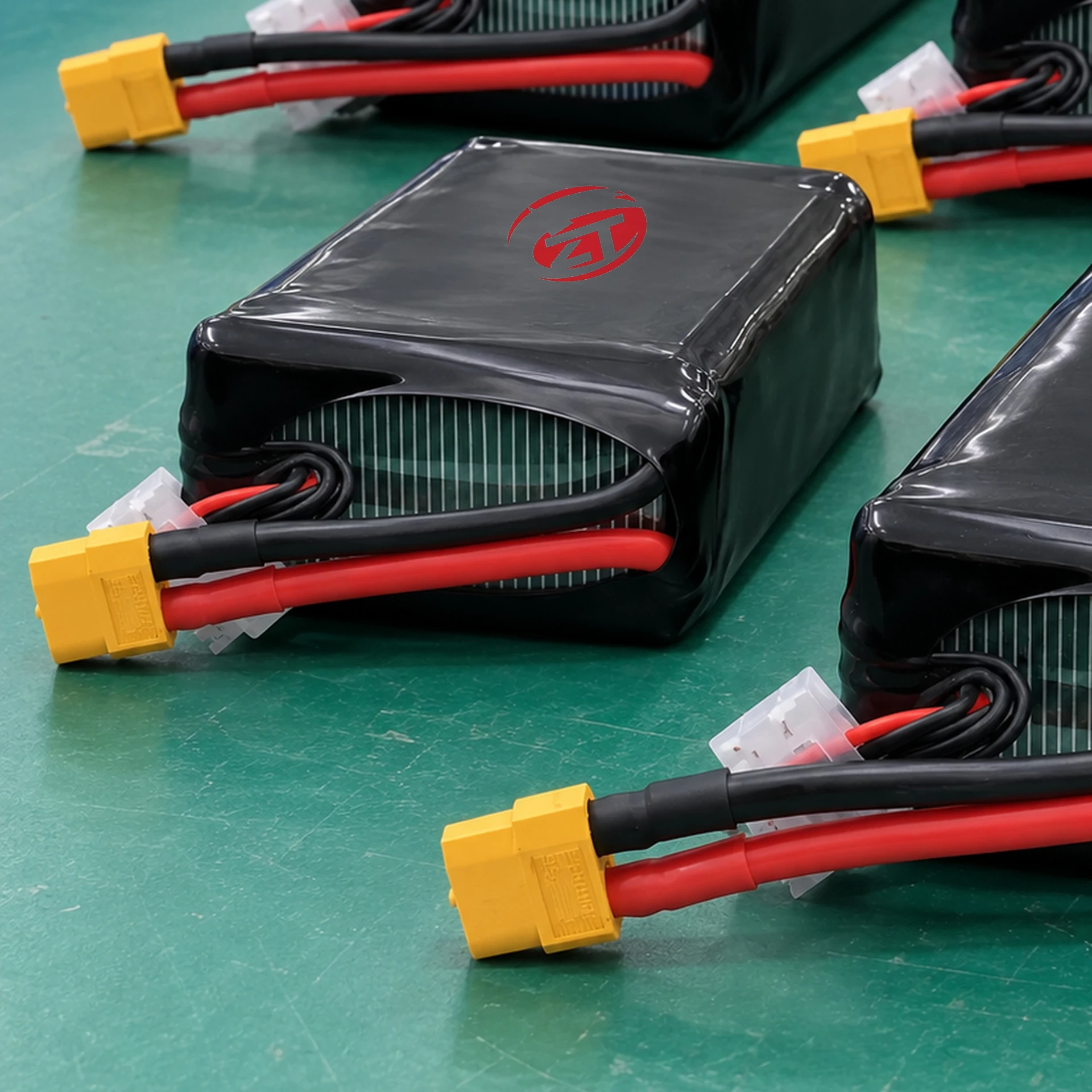

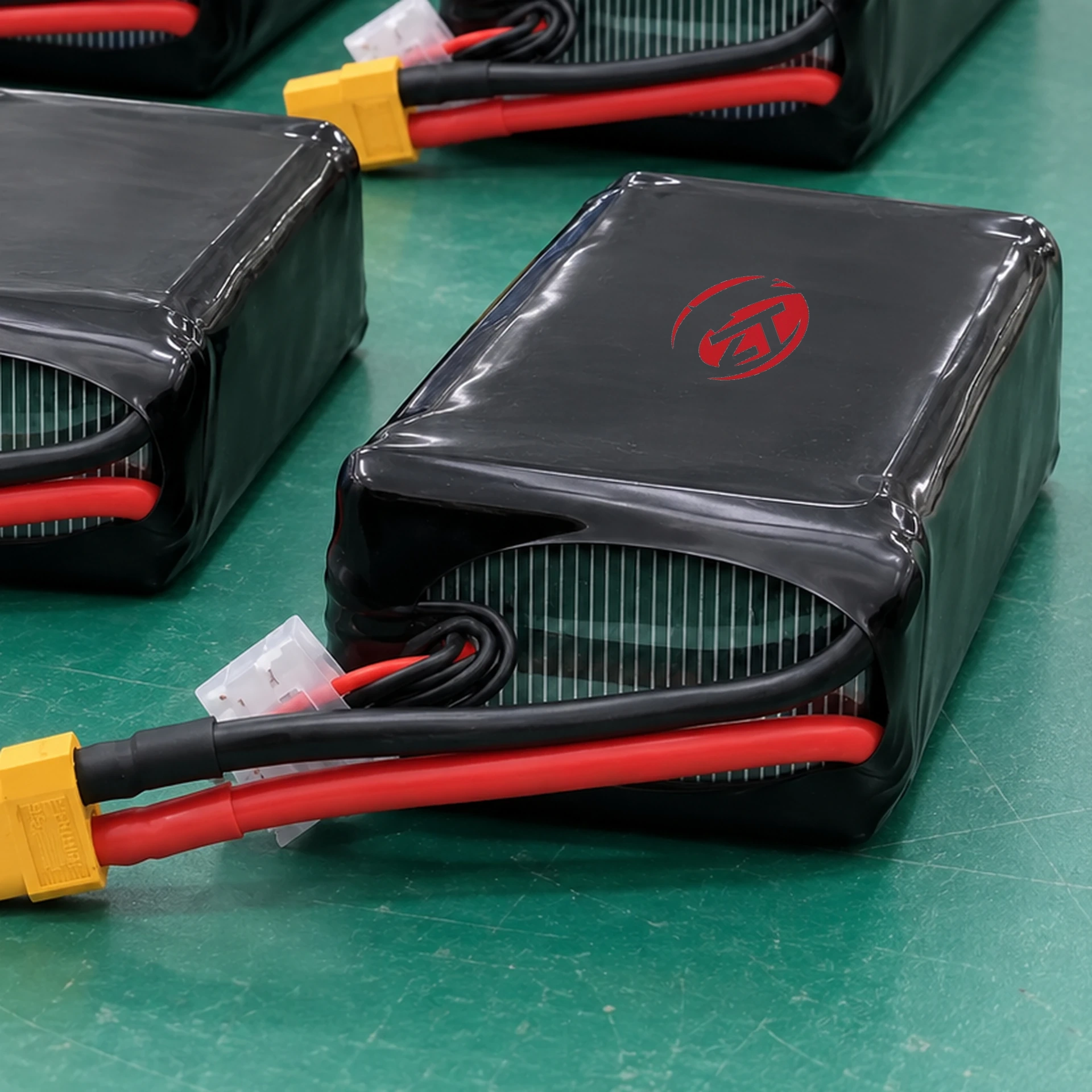

The low, flat body is a defining feature of the 6S 9000mAh FPV Battery. At 33mm high, it presents a different restraint and cable-access problem from a taller pack with similar capacity. The product’s 10C marking is a rate reference, not independent proof of finished-pack continuous current. Its 23.7V nominal value also requires the approved high-voltage charge profile rather than a generic 6S setting.
HV Platform and 10C Marking
This 6S LiHV battery uses 23.7V nominal voltage and 9Ah capacity for 213.3Wh nominal energy. The product label shows 10C. Multiplying 9Ah x 10C gives 90A as an arithmetic reference only; it should not be presented as a verified continuous pack current without applicable finished pack test data. Before sample approval, New Journey reviews average current, peak current, cooling, wiring, connector temperature, mission duty cycle, and the approved charge profile.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference configuration | 6S9000HV3-10C |
| Battery type | High energy HV lithium polymer battery pack |
| Configuration | 6S1P |
| Nominal voltage | 23.7V |
| Nominal capacity | 9000mAh |
| Nominal energy | 213.3Wh |
| Cell energy density | 300Wh/kg (cell-level value) |
| Discharge rate shown on product | 10C |
| Arithmetic current reference | 90A (9Ah x 10C); not a verified continuous-current limit |
| Pack weight | Approx. 824g |
| Pack size (L x W x H) | 165 x 71 x 33 mm |
| Power connector | XT90 shown on product; final order configuration confirmed before production |
| Balance connector | Multi-pin balance connector shown; mating interface confirmed before order approval |
| Charge method | Matched 6S HV balance charging; exact charge voltage to be confirmed |
| Charge profile confirmation | Use the approved charger profile for the final battery configuration |
| Cycle-life reference | Approx. 200-400 cycles; near the end of this range, available capacity typically declines to about 80% of initial rated capacity under specified conditions |
Product Details
Energy in a Flat Body
This 6S LiPo battery uses cells with a stated energy density of 300Wh/kg. Assess that cell rating against the corresponding cell specification and test conditions. For installation, use the pack's 213.3Wh nominal energy, 165 x 71 x 33mm body and approximately 824g mass as separate assembly inputs. Leads and wrapping are not inputs for reverse-calculating cell energy density.
Actual Flight Load
For a high voltage LiPo battery in this mass class, the engineering question is not simply the C-rate on the label. Buyers should confirm whether the aircraft current profile stays within the approved pack limits and whether the lead, connector, cable routing, mounting method, and cooling remain appropriate under the intended duty cycle.
Airframe Integration
The 6S FPV battery needs an airframe with room for the 165 x 71 x 33mm body, straps and cable access. Its approximately 824g mass affects balance and takeoff weight. Frame size or propeller diameter alone cannot establish compatibility.
Sample Evaluation
An FPV drone battery evaluation should include loaded voltage and temperature through the intended flight cycle. Record the approved charging profile, connector and installed position with those observations. The same setup then provides a useful basis for assessing later samples.
Verify the high-voltage charge setting
Record the approved charge ceiling with the sample and confirm that the intended charger can apply it. Review the stated 10C basis with the finished harness and intended load instead of treating a label as an unrestricted system rating.
Production and Handling Context
Discuss the Sample and Order
Send airframe mass limit, centre-of-gravity range and charger specification to New Journey for a 6S 9000mAh FPV Battery quotation.
Compare 6S 9000mAh FPV Battery with related models
| Selection point | 6S 9000mAh FPV Battery | 6S 3200mAh FPV Battery | 6S 4200mAh FPV Battery |
|---|---|---|---|
| Nominal voltage | 23.7V | 22.2V | 22.2V |
| Nominal capacity | 9000mAh | 3200mAh | 4200mAh / 4.2Ah |
| Nominal energy | 213.3Wh | 71.04Wh | 93.24Wh |
| Pack weight | Approx. 824g | Approx. 456g | Approximately 574g |
FAQ
What should I compare before selecting 6S 9000mAh FPV Battery?
nominal voltage: 23.7V for this model, compared with 22.2V for 6S 3200mAh FPV Battery; nominal capacity: 9000mAh for this model, compared with 3200mAh for 6S 3200mAh FPV Battery.
Can I reuse a charger with this battery?
Charge profile confirmation: Use the approved charger profile for the final battery configuration. The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
What does the listed weight tell me about installation?
Pack weight: Approx. 824g. Weight alone does not define the battery envelope or mounting points. Obtain the external dimensions and retention drawing for the selected build before changing the aircraft battery bay. Include the terminal position and access needed to secure the battery.
Which connection details should be fixed for this battery?
Power connector: XT90 shown on product; final order configuration confirmed before production; Balance connector: Multi-pin balance connector shown; mating interface confirmed before order approval. Main power and balance connections serve different purposes. Keep the pinout and polarity tied to the ordered harness, and approve the connector and wire limits for the actual load; a matching plug shape is not a current rating.
