Product Description
The 51.2V 105Ah Golf Cart Lithium Battery uses sixteen LiFePO4 cells in series. Its 500 x 318 x 231mm reference envelope excludes terminals and handles, which need their own installation clearance. The standard 105A discharge reference and maximum 200A continuous rating describe different duty levels. CAN is an optional integration route; controller protocol compatibility remains specific to the vehicle.
Technical Specifications
| Specification | Details |
|---|---|
| Market Voltage Class | 48V |
| Nominal Voltage | 51.2V |
| Cell Configuration | 16S1P LiFePO4 |
| Rated Capacity | 105Ah |
| Nominal Energy | 5.376kWh |
| Charge Voltage | 58.4V |
| Nominal / Max Charge Current | 52.5A nominal / 105A maximum |
| Project Charger | 58.4V LiFePO4; 25A standard option; up to 50A after project review |
| Standard / Max Continuous Discharge | 105A standard / 200A maximum continuous |
| Peak Discharge | 400A for 35 seconds |
| Discharge Cut-off Voltage | 40V |
| BMS | 200A Smart BMS, matched to approved pack configuration |
| Communication | RS485 standard; Bluetooth APP + external SOC display; CAN optional after controller matching |
| Ingress Protection | IP67 |
| Reference Size / Weight | 500 × 318 × 231 mm (±3 mm; excluding terminals/handles) / 47 kg |
| Operating Temperature | Charge 0–55°C / Discharge -20–60°C |
| Cycle Life Test | ≥3500 cycles to 80% retained capacity under source test method |
Product Details
48V Class and 51.2V Nominal
Choose a 51.2V golf cart battery only after the controller and charger have been checked against its operating window. The vehicle market label does not define every electrical limit or communication requirement.
Approve the external interfaces

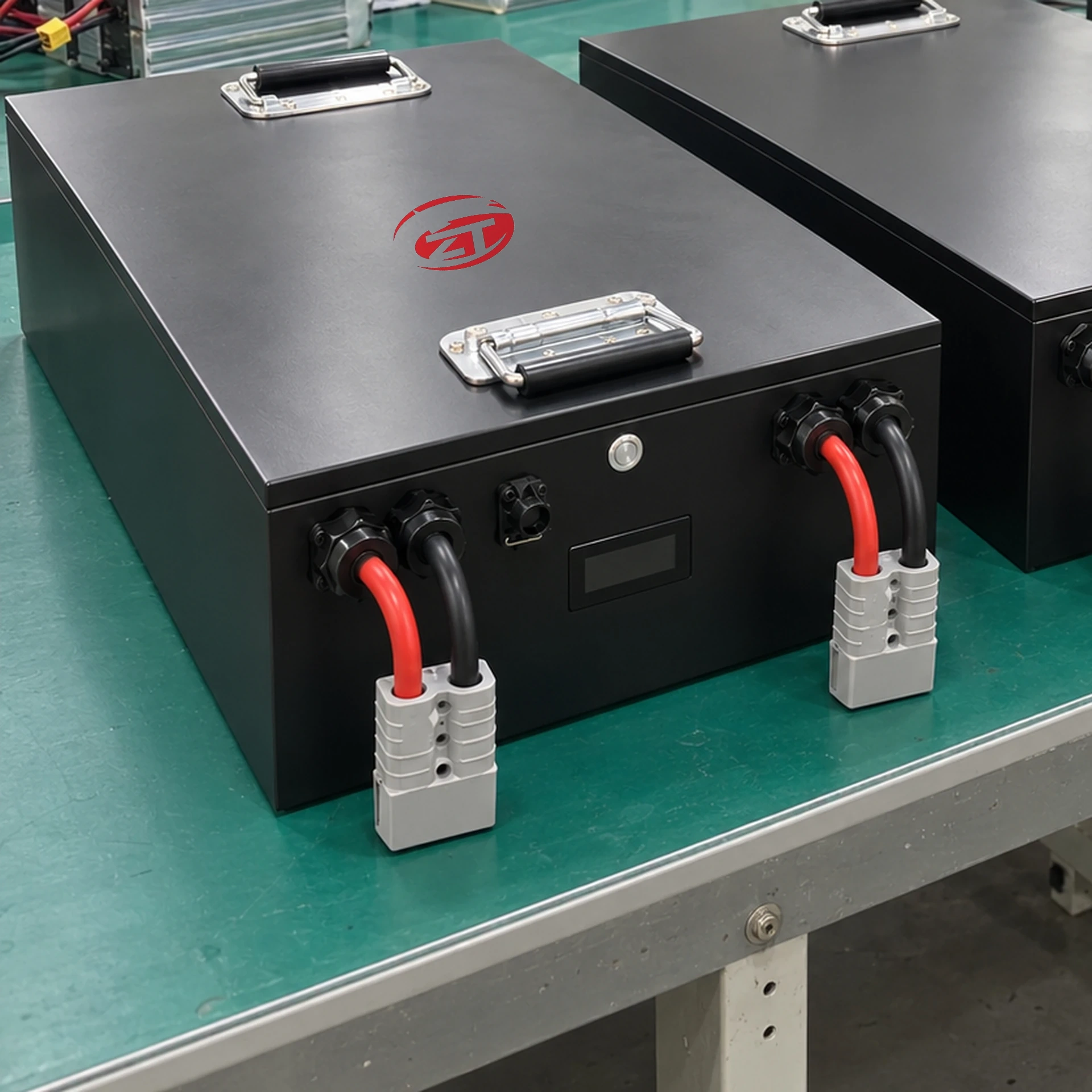

For sample acceptance, compare the terminal positions, housing and communication connection with the cart drawing. The 500 x 318 x 231mm reference excludes terminals and handles, so those features need their own clearance check before committing to a supplier batch.

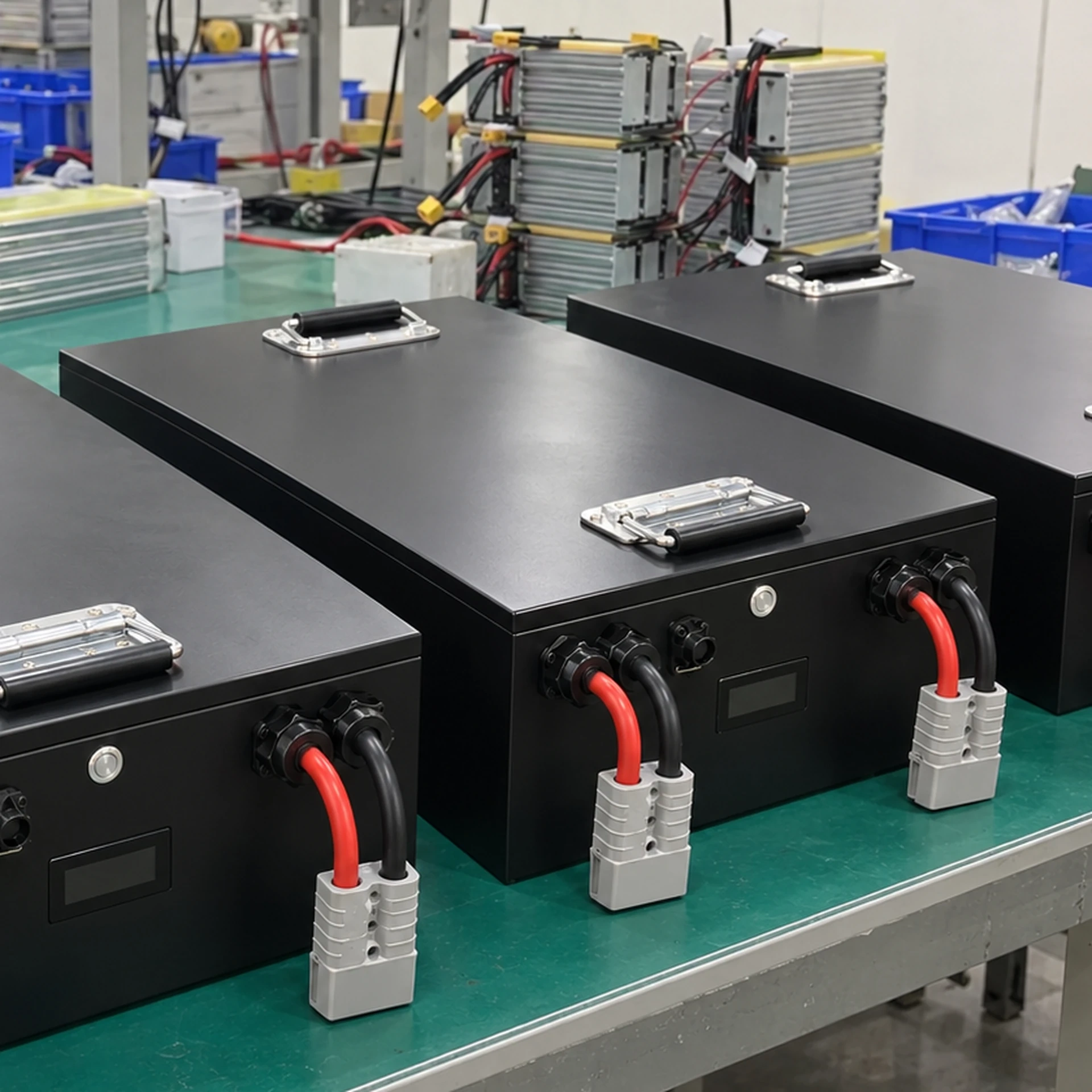

Production and Handling Context
Discuss the Sample and Order
Ask New Journey for a supplier quotation using the cart model, duty cycle and communication requirements. Confirm the terminal and handle clearances along with the chosen BMS configuration.
FAQ
Can I reuse a charger with this battery?
Charge Voltage: 58.4V; Nominal / Max Charge Current: 52.5A nominal / 105A maximum. Match the charger profile, polarity and connection to the ordered assembly. A voltage-class label alone does not establish compatibility with an existing charger.
How much installation space should I allow for this battery?
Reference Size / Weight: 500 × 318 × 231 mm (±3 mm; excluding terminals/handles) / 47 kg. Allow access to the terminals or connector and room for the cable bend and retention hardware. Compare the finished assembly drawing with the actual equipment space before fixing the mounting points.
What discharge limit should the equipment designer use?
Standard / Max Continuous Discharge: 105A standard / 200A maximum continuous; Peak Discharge: 400A for 35 seconds. A short-duration peak is not a sustained operating allowance. Retain the stated conditions when checking the operating load, connector and wiring.
Does the stated capacity guarantee a particular driving range?
It does not. Vehicle mass, gradients, speed, repeated starts and accessory loads affect energy use. Keep the original controller voltage requirements in view; a higher-capacity option is useful only if its physical and electrical limits fit the vehicle. Nominal Voltage: 51.2V; Rated Capacity: 105Ah; Nominal Energy: 5.376kWh.
