Product Description

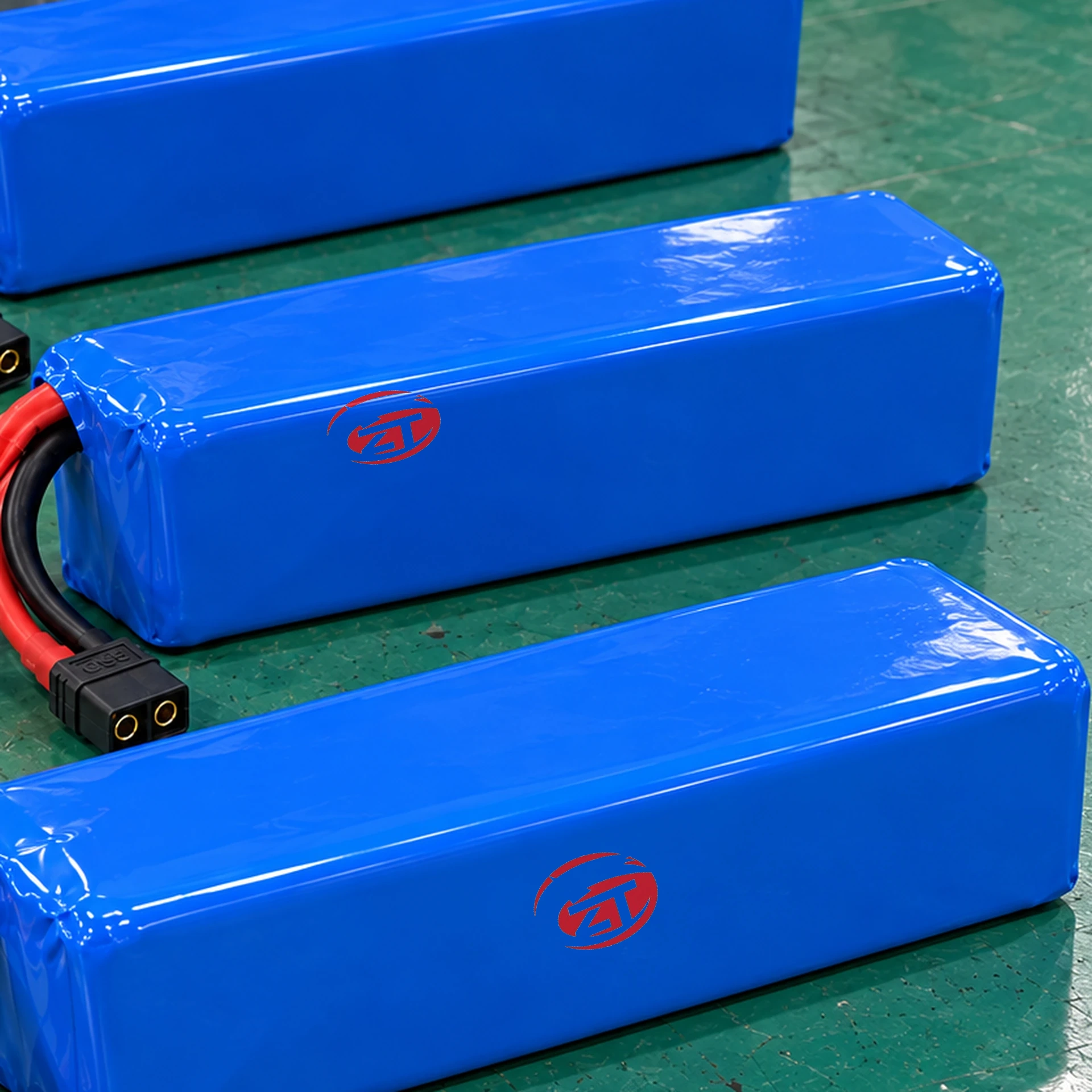

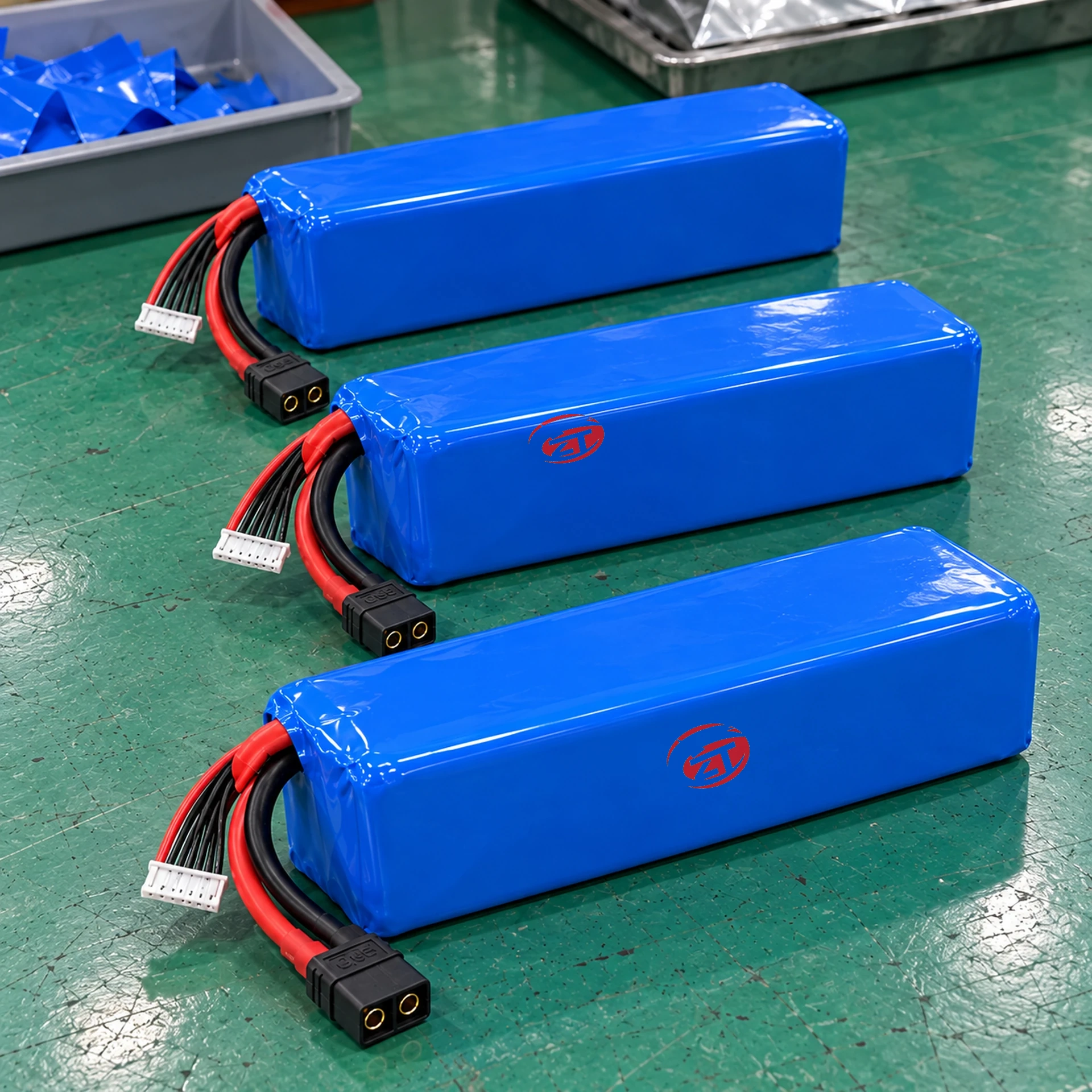

Width is a distinguishing feature of the 6S 80Ah UAV Drone Battery. Its 75 x 117 x 350mm reference body can be evaluated for narrow compartments, although wiring and cushioning require additional space. This is the 21.0V semi-solid model, with a 25.8V charge endpoint. It should be identified separately from the catalog’s 23.1V, 6S2P 80Ah assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6S80Ah |
| Cell designation | 107110300-80000mAh |
| Cell type | Semi solid |
| Series configuration | 6S |
| Nominal voltage | 21.0V |
| Capacity | 80Ah / 80000mAh |
| Nominal energy | 1680Wh (nominal voltage × capacity) |
| Cell energy density | 400Wh/kg (cell value) |
| Maximum charge current | 80A (1C) |
| Charge cutoff voltage | 25.8V |
| Discharge cutoff voltage | 15.0V at T ≥ 0°C; 13.2V at T < 0°C |
| Continuous discharge current | 240A (3C) |
| Maximum discharge current | 800A (10C), 10 seconds, SOC > 50% |
| Condition | Specification |
|---|---|
| Working temperature | -40 to 55°C |
| Storage temperature | -20 to 40°C |
| Storage humidity | <85% RH |
| Cycle-life reference | 500 cycles |
| Mechanical item | Specification |
|---|---|
| Body dimensions (W × T × H) | 75 × 117 × 350mm; each ±5mm |
| Approximate body weight | 4.4kg |
| Optional interface | Configuration |
|---|---|

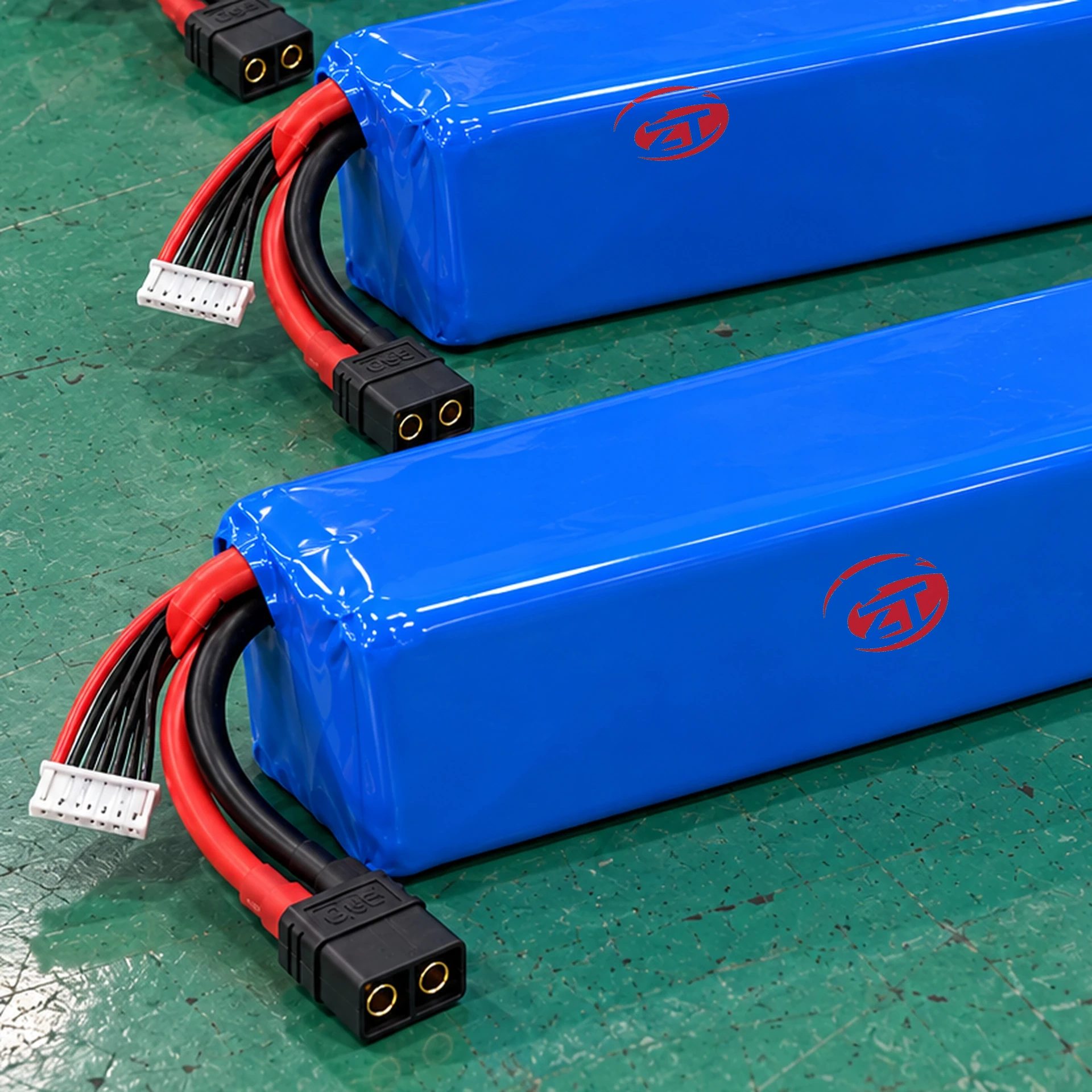

| Main cable and connector | 6AWG, 150mm; QS8 |
| Balance harness and connector | 22AWG, 150mm; XH-7P (B0–B6) |
Operating-temperature limits do not by themselves define permitted charging temperatures. Apply the approved charging profile, load conditions and finished-harness limits for the ordered configuration.
Product Details
Insulation and Harness Support
For an 80Ah semi solid battery, material terminology alone does not define the finished pack’s manufacturing tolerances. Confirm the specified cell platform, insulation, harness and dimensional acceptance in the assembly record.
Measure the complete installation envelope
For a sample, measure the wrapped body and document the space taken by the leads in the intended mounting position. Use the agreed drawing for later batch checks. The stated body dimensions do not include every bend or connector position in an installed aircraft.

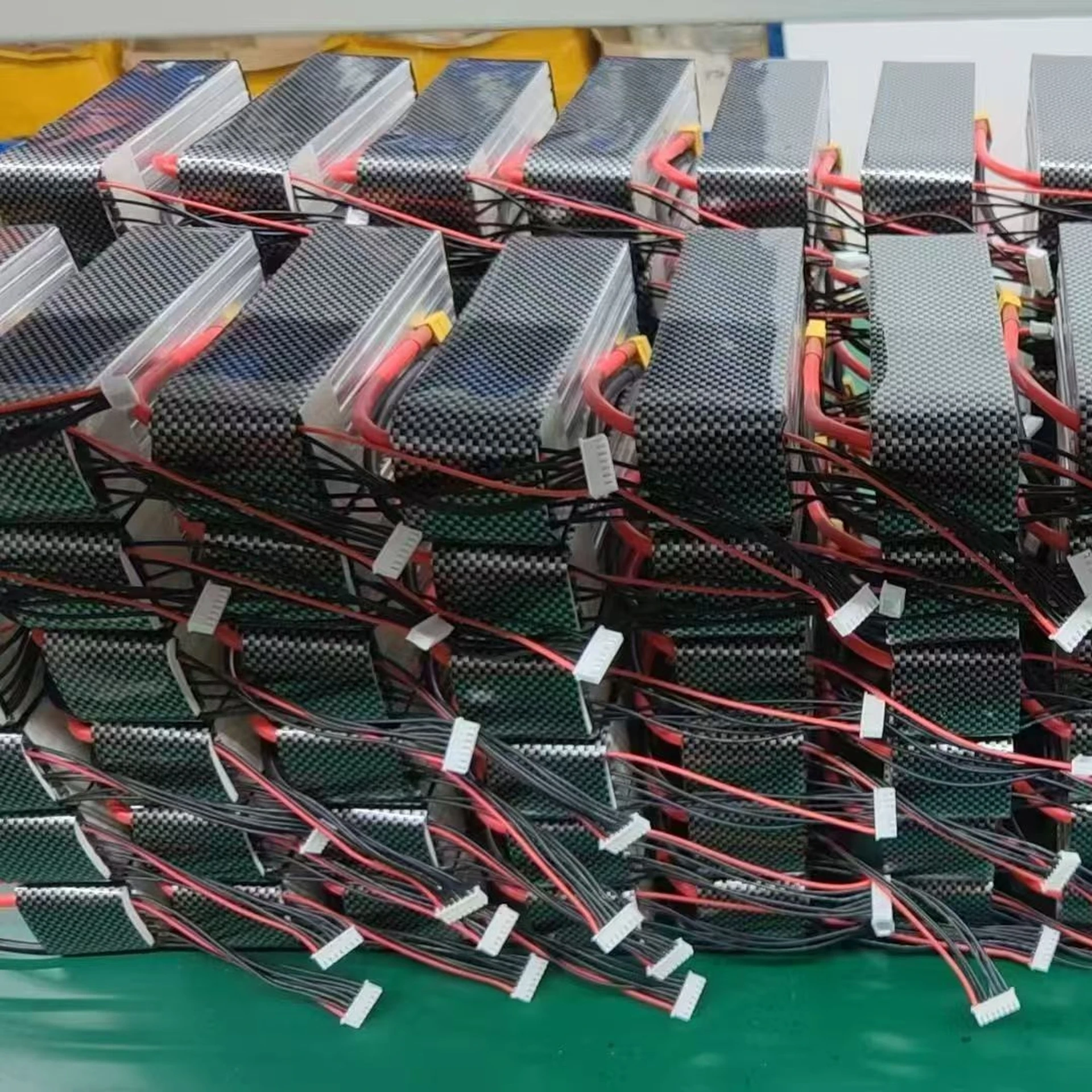

Production and Handling Context
Request a Configuration Review
To request a customized quotation, provide the bay width, insertion route and mounting method. New Journey can review the QS8 interface and load profile before fixing the sample arrangement.
Compare 6S 80Ah UAV Drone Battery with related models
| Selection point | 6S 80Ah UAV Drone Battery | 6S 16000mAh UAV Battery | 6S 22000mAh UAV Battery |
|---|---|---|---|
| Nominal voltage | 21.0V | 22.2V | 22.2V |
| Nominal energy | 1680Wh (nominal voltage × capacity) | 355.2Wh | 488.4Wh |
| Cell energy density | 400Wh/kg (cell value) | 270Wh/kg cell value | 350Wh/kg individual-cell value |
| Charge cutoff voltage | 25.8V | 25.2V | 25.5V |
| Discharge cutoff voltage | 15.0V at T ≥ 0°C; 13.2V at T < 0°C | 15.0V | 15.0V |
FAQ
What should I send to obtain a useful quotation rather than a generic price?
For the selected battery, provide a bay drawing, supported voltage range, continuous and transient loads, connector polarity and target quantity. Add the operating environment and any requested documents. This lets the quotation address installation and interface choices as well as the battery itself.
How is this different from the 6S2P 80000mAh option?
This reference uses 21.0V and 1680Wh. The separately listed 6S2P 80Ah configuration uses 23.1V and 1848Wh. Capacity alone does not identify a replacement; quote the voltage, cell configuration and dimensions together.
What charging voltage and current are specified for this model?
Charge cutoff voltage: 25.8V; Maximum charge current: 80A (1C). The charger must support this series count and the ordered balance connection. A similar S-count label on a different chemistry does not establish the same charge ceiling.
How much installation space should I allow for this battery?
Body dimensions (W × T × H): 75 × 117 × 350mm; each ±5mm; Approximate body weight: 4.4kg. The battery bay also needs space for the cable exits, connectors and restraint. Support the battery body independently of its wires; the body envelope does not include every installation clearance.
