Product Description
The second parallel cell row gives the 11.1V 10Ah Battery Pack more capacity than the 5000mAh version on the same nominal voltage platform. It also increases thickness from the slimmer 22mm reference to approximately 45mm. The selected connector must suit the actual load: an option listed in a catalog does not automatically carry the assembly’s full 30A rating.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 11.1V 10Ah Battery Pack |
| Brand | New Journey |
| Chemistry | NCM |
| Cell Format | 21700 cylindrical cell |
| Cell Configuration | 3S2P (6 cells total; 21700-5000mAh reference) |
| Rated Capacity | 10Ah |
| Minimum Rated Capacity | 9.9Ah |
| Nominal Voltage | 11.1V |
| Nominal Energy | Approx. 111Wh, calculated from 11.1V x 10Ah |
| Cycle Life Reference | Supplied specification: >1000 cycles with remaining capacity >80% of initial; complete test conditions not supplied |
| Maximum Charge Current | 5A; 0.5C charging recommended in supplied specification |
| Charge Cut-off Voltage | <=12.6V |
| Maximum Continuous Discharge | 30A |
| BMS Reference | 30A; final protection functions and thresholds to be confirmed |
| Discharge Cut-off Voltage | >=7.8V; 9V recommended in supplied specification |
| Housing Material | Heat-shrink film |
| Dimensions | Approx. 68 x 45 x 72 mm |
| Weight | Approx. 0.5kg |
| Connector Options | XT30, DC5521, or XT60 |
| Cell Brand Options | A-grade EVE, DMEGC, BAK, LG, or Samsung; exact model subject to project requirements and availability |
| Certification / Transport Documents | To be confirmed for the exact 21700 3S2P ordered model, destination, and shipment |
Product Details

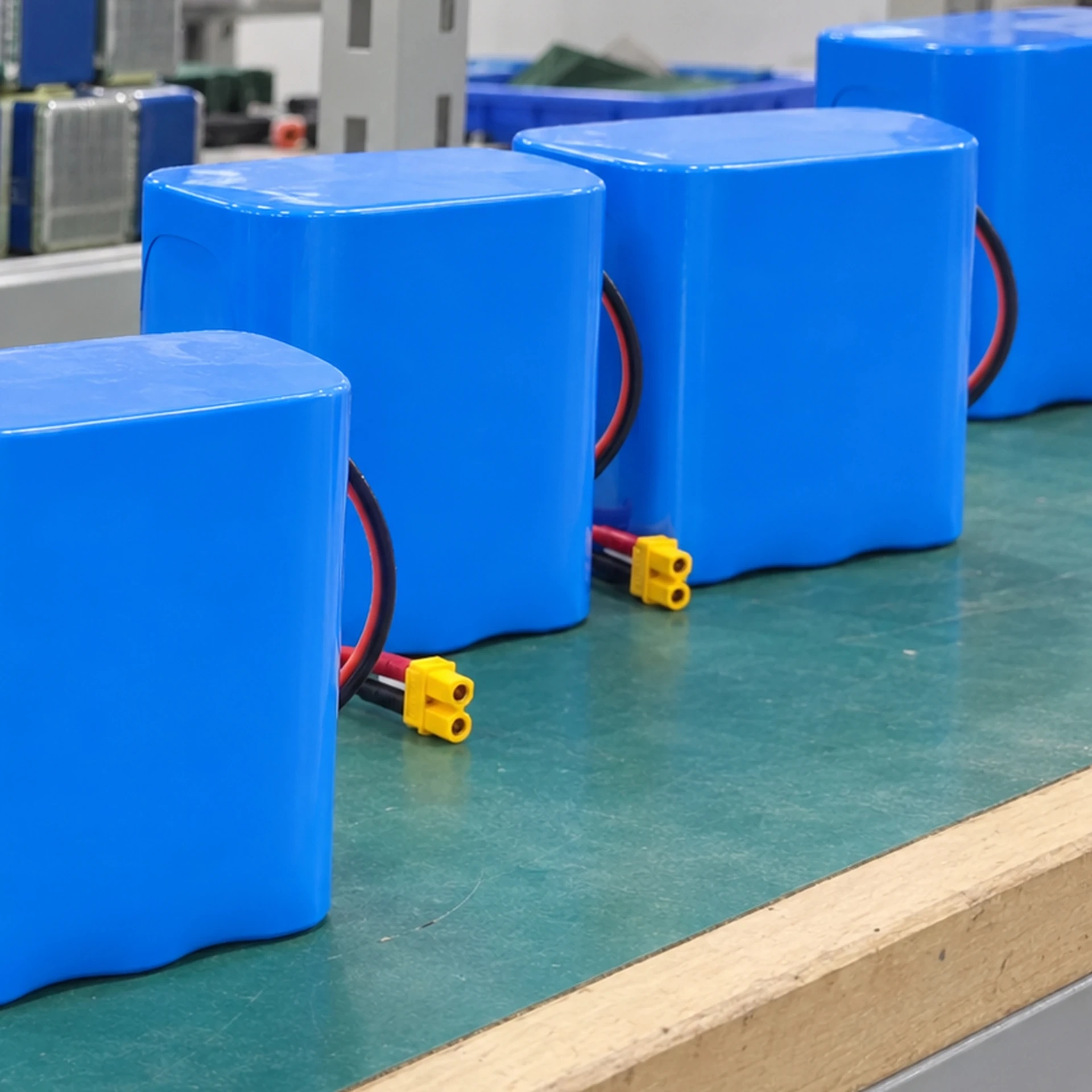

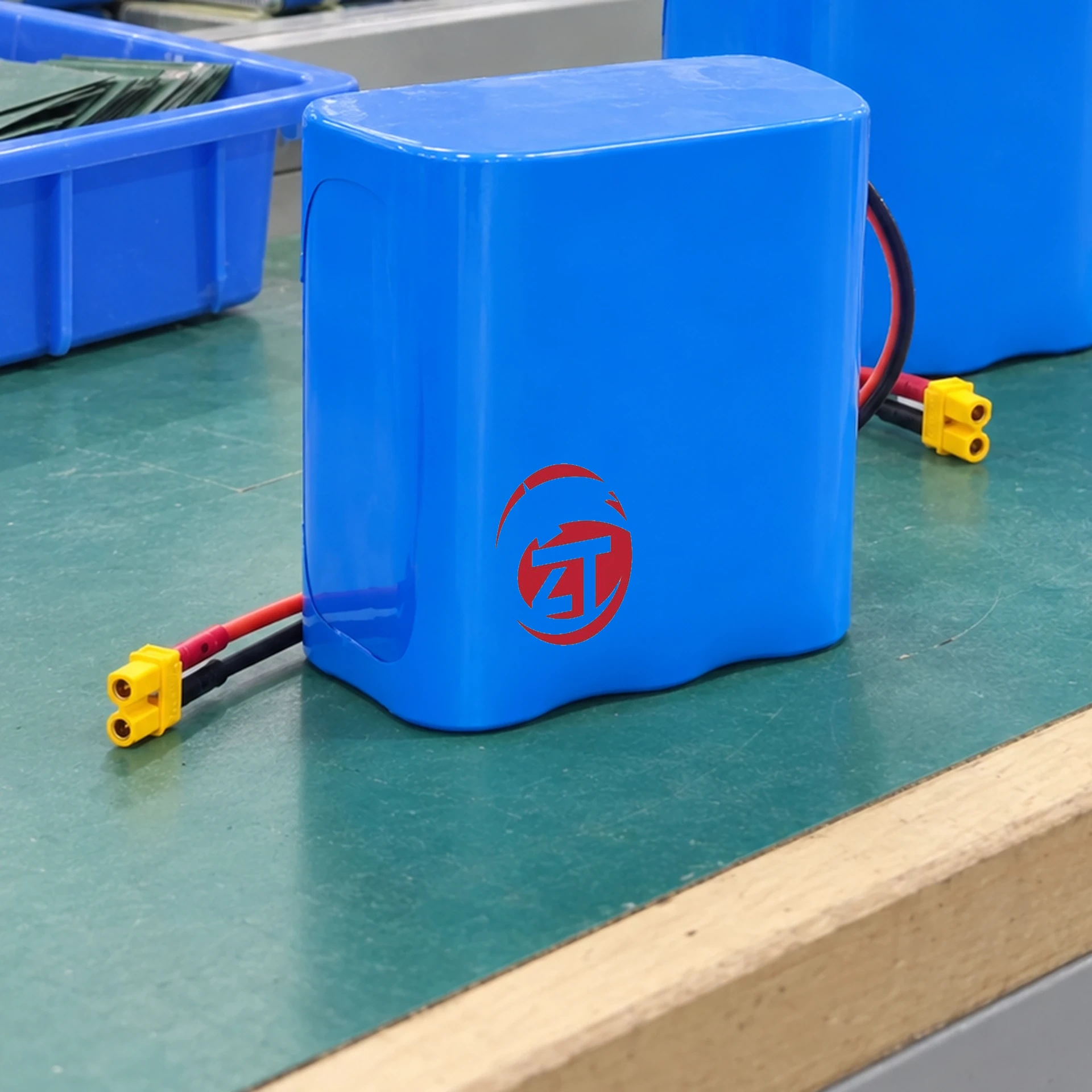

Check the six-cell 21700 assembly
Use the 68 x 45 x 72mm reference as a starting point for the finished drawing. Confirm strain relief, conductor routing and temperature at the agreed load before carrying the sample specification into production.

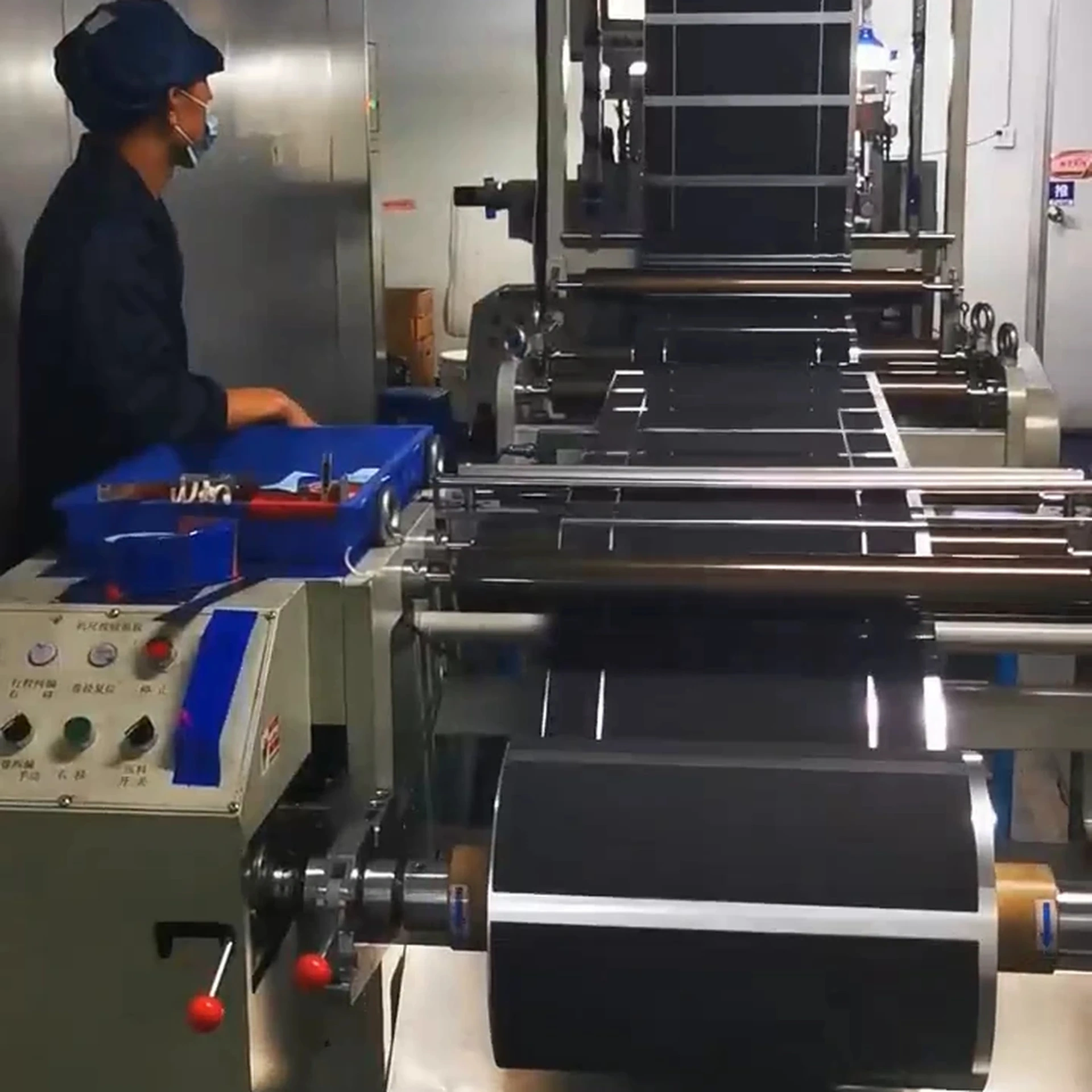

Production and Handling Context
Request a Configuration Review
Send continuous and peak load, cable route and charging specification to New Journey for an 11.1V 10Ah Battery Pack quotation.
Compare 11.1V 10Ah Battery Pack with related models
| Selection point | 11.1V 10Ah Battery Pack | 11.1V 2000mAh Battery Pack | 11.1V 2600mAh Battery Pack |
|---|---|---|---|
| Chemistry | NCM | NCM | Lithium-ion (Li-ion) |
| Rated Capacity | 10Ah | 2000mAh (2Ah) | 2600mAh (2.6Ah) |
| Nominal Voltage | 11.1V | 11.1V | 11.1V |
| Nominal Energy | Approx. 111Wh, calculated from 11.1V x 10Ah | Approx. 22.2Wh, calculated from nominal voltage × rated capacity | Approx. 28.86Wh |
FAQ
What should I compare before selecting 11.1V 10Ah Battery Pack?
rated capacity: 10Ah for this model, compared with 2000mAh (2Ah) for 11.1V 2000mAh Battery Pack; nominal energy: Approx. 111Wh, calculated from 11.1V x 10Ah for this model, compared with Approx. 22.2Wh, calculated from nominal voltage × rated capacity for 11.1V 2000mAh Battery Pack.
What charging voltage and current are specified for this model?
Charge Cut-off Voltage: <=12.6V; Maximum Charge Current: 5A; 0.5C charging recommended in supplied specification. Match the charger profile, polarity and connection to the ordered assembly. A voltage-class label alone does not establish compatibility with an existing charger.
How much installation space should I allow for this battery?
Dimensions: Approx. 68 x 45 x 72 mm; Weight: Approx. 0.5kg. Allow access to the terminals or connector and room for the cable bend and retention hardware. Compare the finished assembly drawing with the actual equipment space before fixing the mounting points.
Which connection details should be fixed for this battery?
Connector Options: XT30, DC5521, or XT60. The selected connector must match polarity, lead routing and the permitted load of the complete assembly. Where alternatives are listed, select the exact version in the order drawing.
