A pouch-cell code is a starting dimension, not a finished installation drawing. The 3.7V 1500mAh LiPo Battery uses the 803450 format, with protection circuitry and a two-wire connection on the sample. Those features change the space needed around the cell. The device design should support the pouch, protect its edges and accommodate the lead route without placing pressure on the seal or tabs.
Cell Size and Finished Envelope
The 803450 LiPo battery has an approximately 8 x 34 x 50mm cell body. Protection circuitry, insulation, tabs and wires add to the finished envelope. Record the assembled dimensions on the sample drawing, including the cable exit, so the device cavity can be checked against the actual battery.
Technical Specifications
| Parameter | Source Sample Reference / Configuration Review |
|---|---|
| Model / Cell Format | 803450 |
| Chemistry | Rechargeable lithium polymer pouch cell |
| Configuration | 1S1P |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1500mAh |
| Nominal Energy | 5.55Wh |
| Charge Voltage | 4.2V reference for 1S Li-ion / LiPo |
| Nominal Cell Format | Approx. 8 × 34 × 50 mm |
| Typical Finished-Pack Reference | Approx. 8 × 34-35 × 52-53 mm with PCM / wires in public 803450 designs |
| Protection | Protection PCB visible on source sample; thresholds require confirmation for the supplied configuration |
| Lead / Connector | Red-black 2-wire sample with small white 2-pin plug; housing, pitch and polarity project-confirmed |
| Current Limits | Project-confirmed from target load and selected cell / PCM |
Product Details
Load and Operating Time
A 1500mAh LiPo battery has three times the nominal capacity of the 500mAh reference, but it does not automatically allow three times the current. The selected cell and protection circuit determine the load limit. Device standby use, active current and charging frequency establish whether the 5.55Wh reserve is appropriate.
Protection and Connector

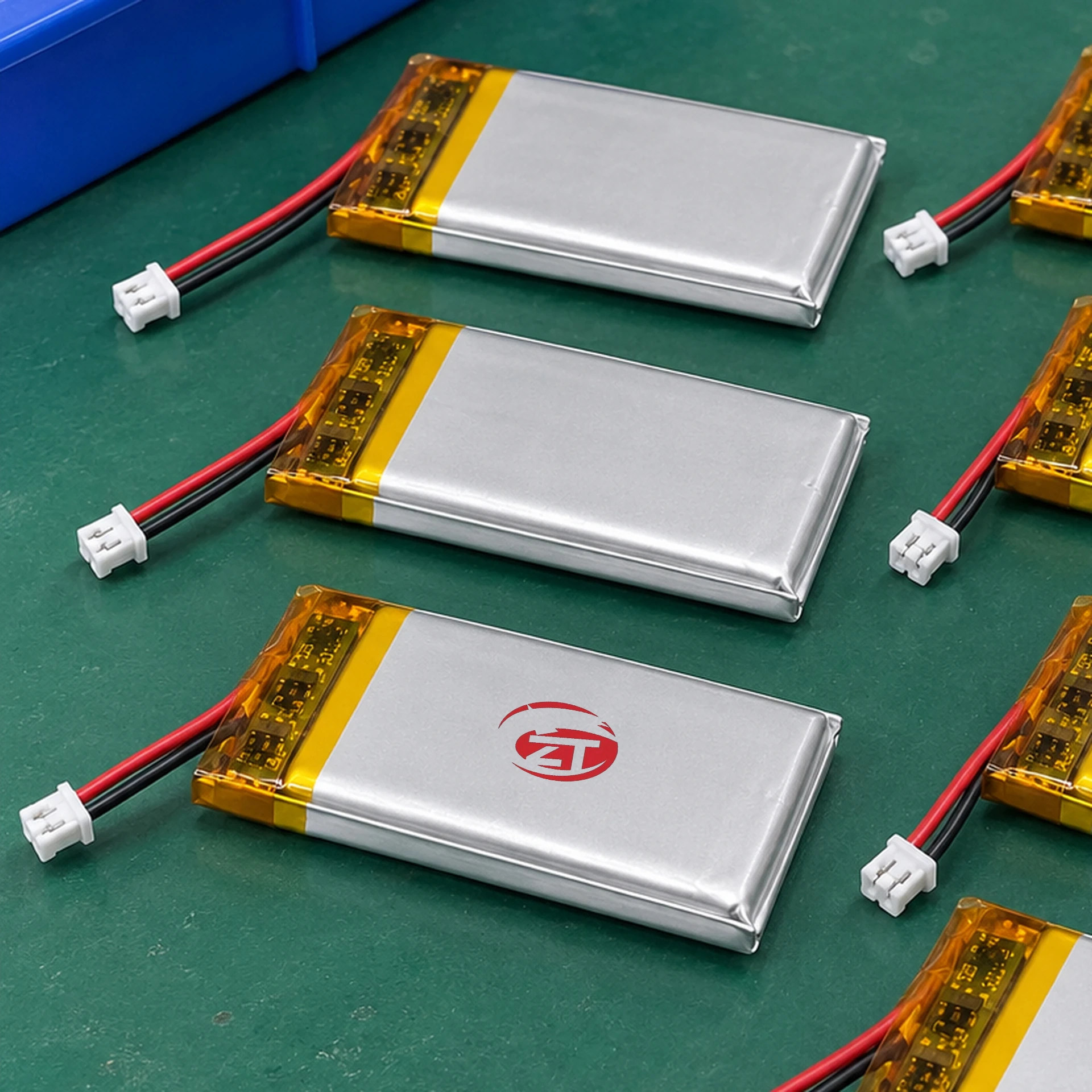

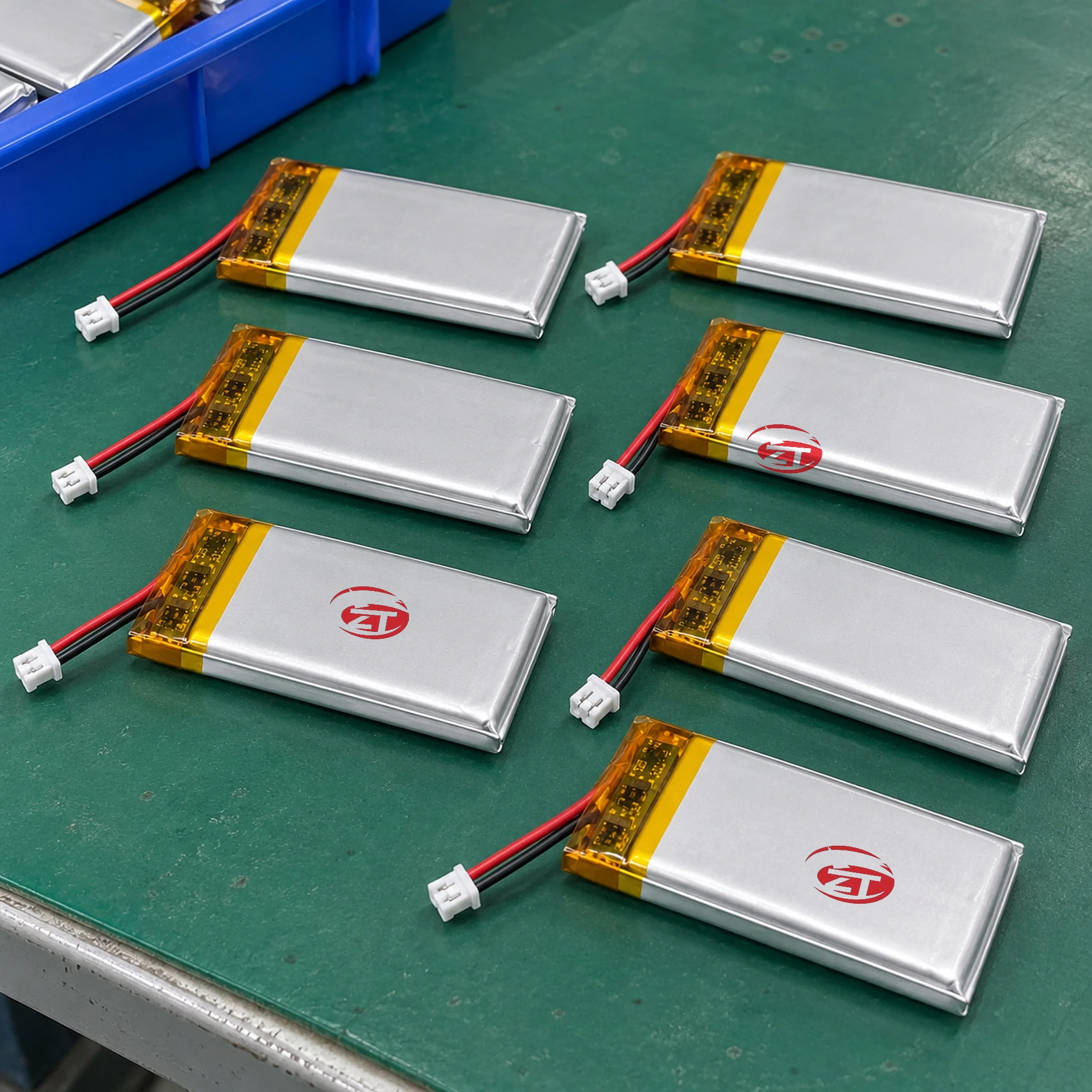

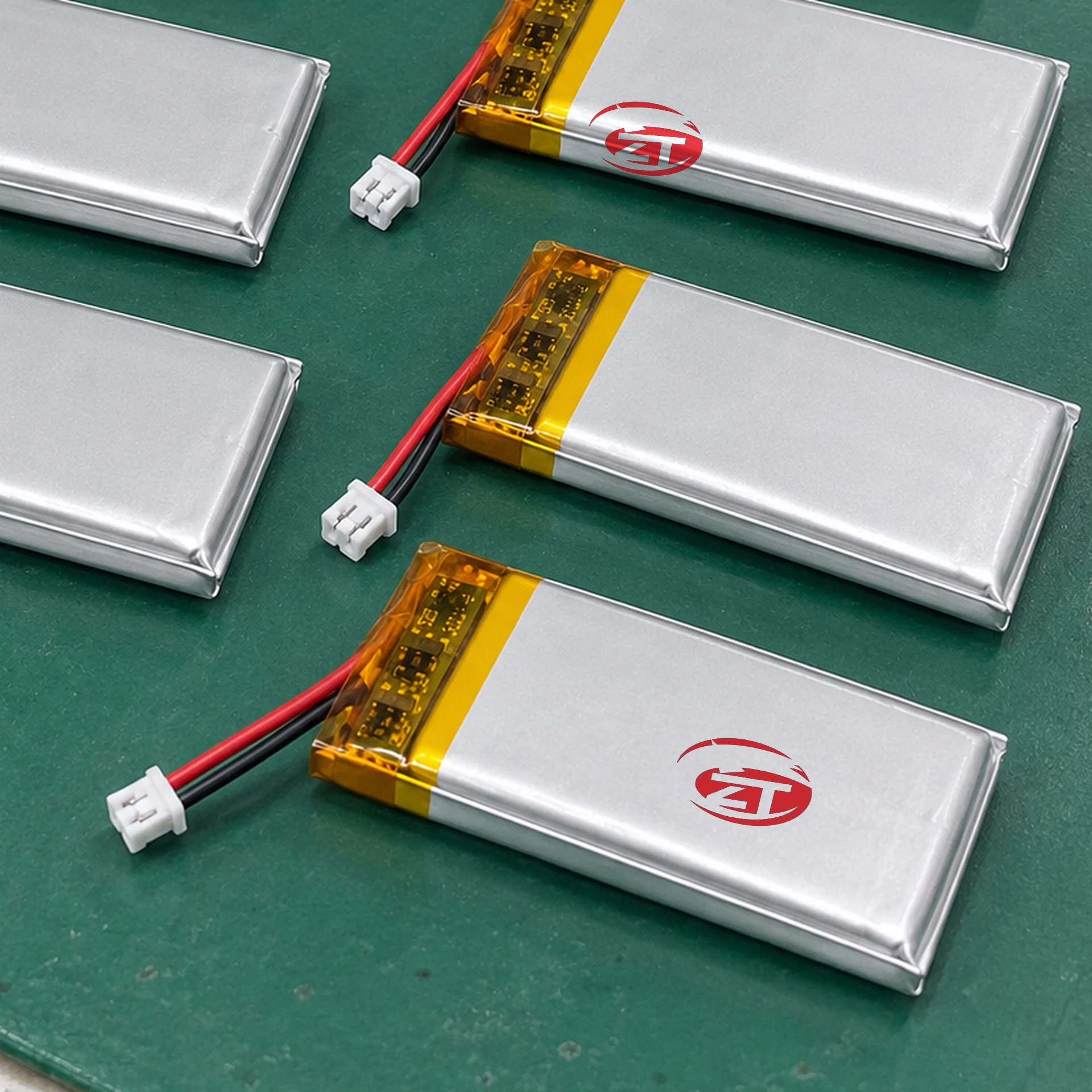

For the 803450 battery, the sample interface includes red and black leads and a small two-pin plug. Specify the connector family, pitch and polarity from the device drawing. Cable length and the exit direction should leave the protection board and pouch tabs free from installation strain.
Portable Device Evaluation
Portable terminals, monitoring equipment and other handheld devices have different load patterns even when they use the same nominal voltage. A motor or radio may draw brief peaks that a quiet sensor does not. Match the measured operating profile to the chosen cell and protection circuit before assigning the finished assembly to a device.
Check thickness in the finished assembly
Measure the sample with the selected protection and wrapping included. Confirm the charger is appropriate for the approved cell voltage and retain the device’s low-voltage behavior as part of integration review.
Production and Handling Context
Request a Configuration Review
Send device cavity, current demand and protection or connector requirements to New Journey for a 3.7V 1500mAh LiPo Battery quotation.
Compare 3.7V 1500mAh LiPo Battery with related models
| Selection point | 3.7V 1500mAh LiPo Battery | 3.7V 500mAh LiPo Battery |
|---|---|---|
| Chemistry | Rechargeable lithium polymer pouch cell | Rechargeable lithium polymer pouch cell |
| Configuration | 1S1P | 1S1P |
| Nominal Voltage | 3.7V | 3.7V |
| Nominal Capacity | 1500mAh | 500mAh |
| Nominal Energy | 5.55Wh | 1.85Wh |
| Charge Voltage | 4.2V reference for 1S Li-ion / LiPo | 4.2V reference for 1S Li-ion / LiPo |
FAQ
What should I compare before selecting 3.7V 1500mAh LiPo Battery?
nominal capacity: 1500mAh for this model, compared with 500mAh for 3.7V 500mAh LiPo Battery; nominal energy: 5.55Wh for this model, compared with 1.85Wh for 3.7V 500mAh LiPo Battery.
What charging settings are available for the 1500mAh pouch pack?
The page gives 4.2V as the 1S Li-ion/LiPo charge-voltage reference. It does not fix a charging-current limit for every assembly. Confirm that limit for the selected cell and protection circuit before selecting the device’s charging circuit.
Is the small white plug enough to identify the connection?
No. The sample has two red/black leads and a white two-pin plug, but its exact housing, pitch and polarity require project confirmation. Compare a dimensioned connector drawing with the device socket; colour and appearance alone are insufficient.
What can the stated capacity tell me about runtime with this battery?
Nominal Voltage: 3.7V; Nominal Capacity: 1500mAh; Nominal Energy: 5.55Wh. Actual runtime depends on the equipment load profile, voltage cut-off and conversion losses. Check the current limits separately from the energy calculation.
